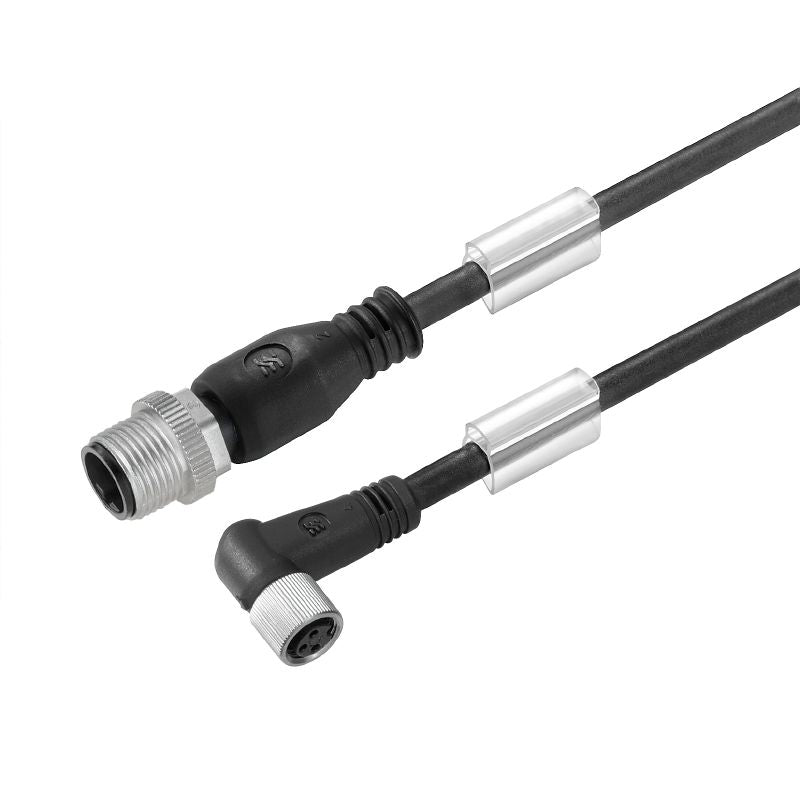

9457980800 - 8m Sensor/Actuator Line, 3 Poles, PUR Sheath
9457980800 - 8m Sensor/Actuator Line, 3 Poles, PUR Sheath
SKU: SKU: 9457980800 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing an 8-meter connecting line designed specifically for sensor and actuator applications, featuring a robust three-pole configuration The line showcases a 90-degree angled straight socket design, free from shielding or LED indicators Crafted from halogen-free PUR sheath material, this product prioritizes safety and environmental friendliness Perfect for a variety of industrial uses, it combines functionality with durability.
Features and Benefits:
•Compliant with RoHS with exemptions.
•Hydrolysis and microbe resistant.
•Suits cable carriers.
•Gold-plated contact surface.
•Resistant to oils and flame spread.
•High insulation resistance.
•High flexibility with a moving temperature range.
Specifications:
| Cable length | 8 m |
| Diameter | 3.6 mm |
| Core cross-section | 0.25 mm² |
| Nominal current | 4 A |
| Nominal voltage | 60 V |
| Protection degree | IP69, IP65, IP66 |
| Temperature range, moving | -25...60 °C |
| Temperature range, stationary | -50...80 °C |
| Bending cycles | 5 Mio |
| Plugging cycles | ≥ 100 |
| Resistance to spread of flame | in accordance with IEC 60332-2-2 |
| Speed | 3.33 m/s |
| Insulation resistance | 10^8 Ω |
| Housing main material | PUR |
