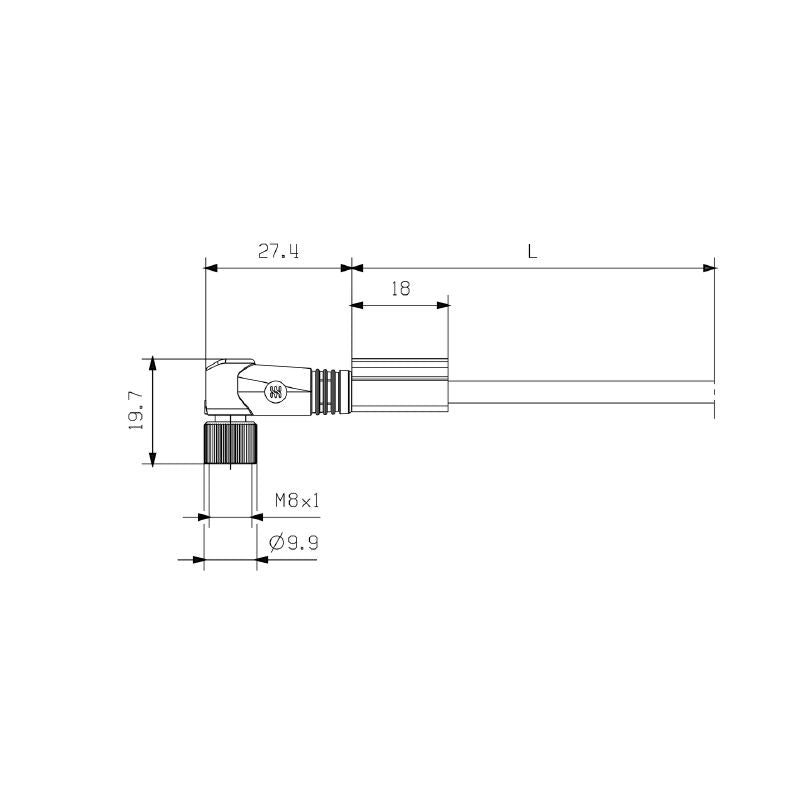

9457980120 - 1.2m M12/M8 Sensor Connection Line with 3 Poles
9457980120 - 1.2m M12/M8 Sensor Connection Line with 3 Poles
SKU: SKU: 9457980120 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

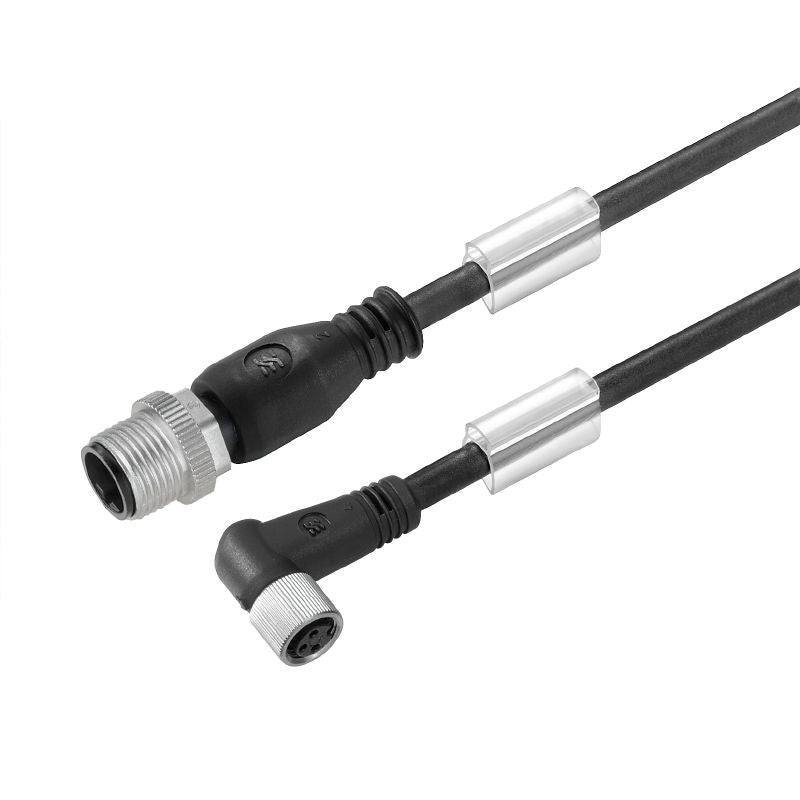

Introducing a reliable sensor and actuator connection line, featuring durable M12 and M8 connectors This 12-meter cable offers both a straight socket design and a 90° angle option for versatile installation Built with a halogen-free PUR sheath, it promotes safety without compromising on functionality Please note that this connection line is unshielded and does not include LED indicators, making it a straightforward choice for your connection needs.
Features and Benefits:
•Connector types include M12 (A-coded) and M8.
•Weight of 38.72 g.
•Diameter of the cable is 3.6 mm.
•The construction meets various standards including IEC 61076-2-101 and IEC 61076-2-104.
Specifications:
| Acceleration | 5 m/s² |
| Bending cycles | 5 Mio |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 1.2 m |
| Core cross-section | 0.25 mm² |
| Insulation | PP |
| Outer cladding | in accordance with UL AWM style 20549 (80 °C / 300 V) |
| Resistance to oils | Yes |
| Nominal current | 4 A |
| Nominal voltage | 60 V |
| Protection degree | IP65, IP66, IP67, IP68, IP69 |
| Temperature range, moving | -25...60 °C |
| Temperature range, stationary | -50...80 °C |
