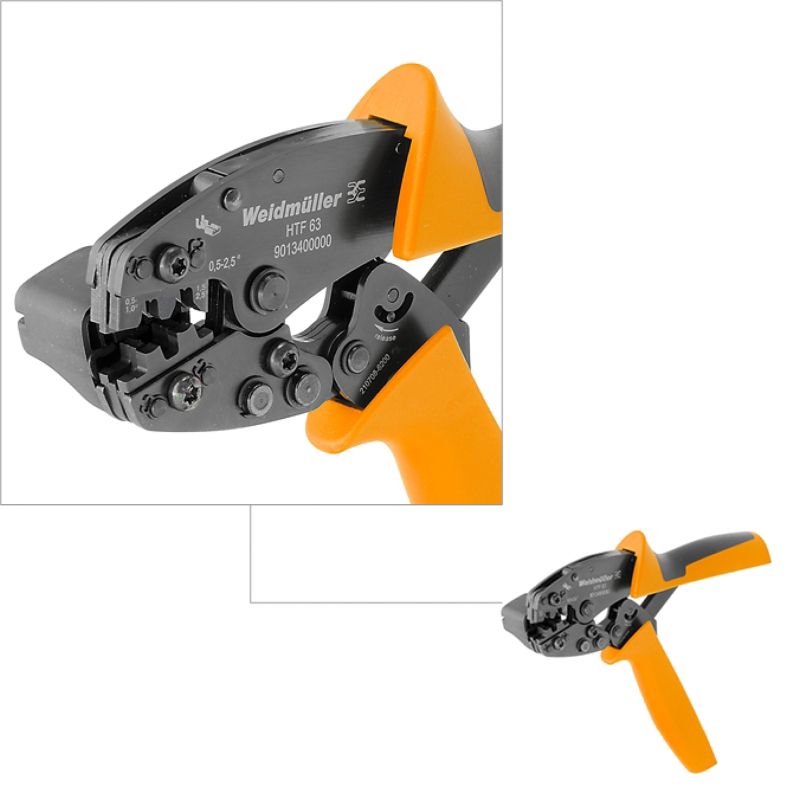

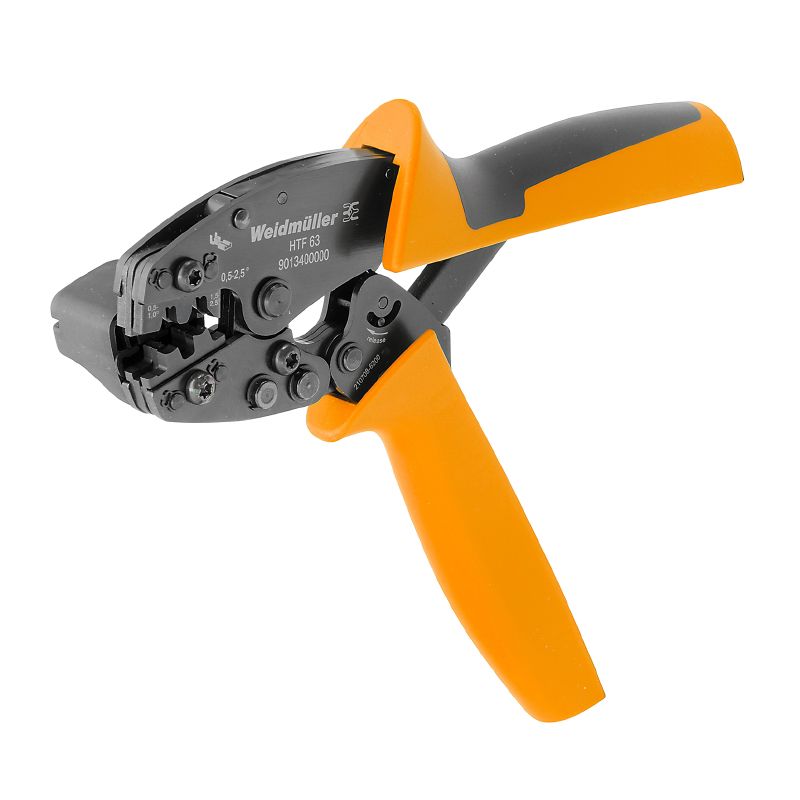

9013400000 - 6.3mm Crimping Tool for Flat-Blade Connectors
9013400000 - 6.3mm Crimping Tool for Flat-Blade Connectors
SKU: SKU: 9013400000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a specialized crimping tool, ideal for use with flat-blade connectors and receptacles measuring 63 mm in width This tool showcases a straightforward mechanical design that eliminates the need for interchangeable inserts, ensuring ease and efficiency in your crimping tasks Perfect for both professionals and DIY enthusiasts, it combines functionality with reliability in a single, user-friendly device.
Features and Benefits:
•Crimping range between 0.5 mm² and 2.5 mm².
•Suitable for conductor cross-section from AWG 14 to AWG 21.
•B-Crimp type crimping profile.
Specifications:
| Width | 200 mm |
| Width (inches) | 7.874 inch |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Plug width | 6.3 mm |
| Type of contact | F-plug / -sleeve |
| Wire end ferrules cross-section, max. | 2.5 mm² |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ETIM 10.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
| ECLASS 15.0 | 21-04-38-11 |
