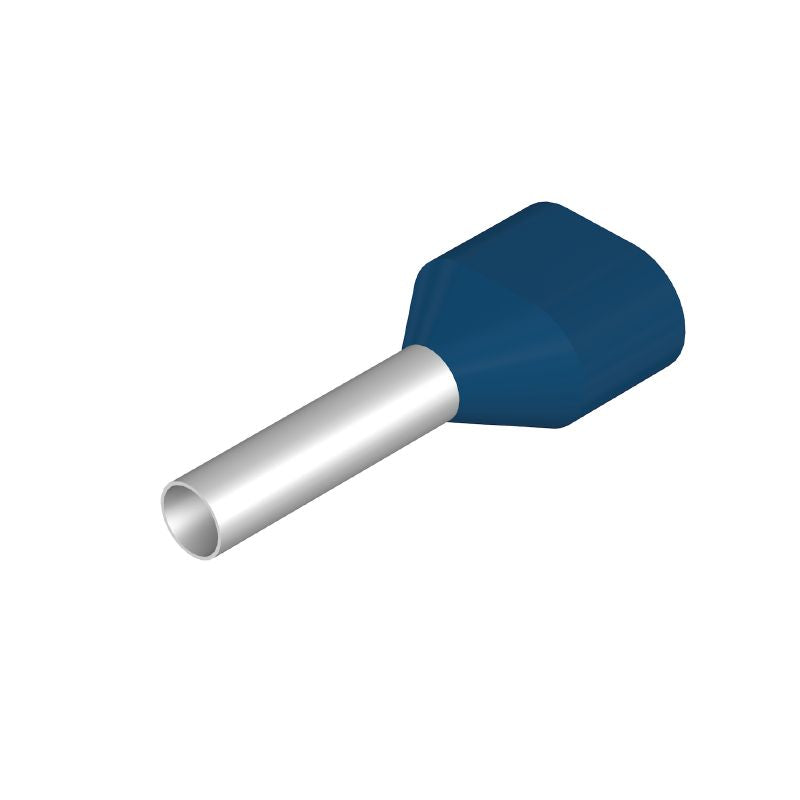

9004740000 - Blue Twin Wire Ferrule, 21mm Length, 2.5mm² Compatible (Pack of 250)
9004740000 - Blue Twin Wire Ferrule, 21mm Length, 2.5mm² Compatible (Pack of 250)
SKU: SKU: 9004740000 Download PDF
- 9004740000 - Blue Twin Wire Ferrule, 21mm Length, 2.5mm² Compatible (Pack of 250)
- 9004740000 - Blue Twin Wire Ferrule, 21mm Length, 2.5mm² Compatible (Pack of 250)
Couldn't load pickup availability
Description:
Upgrade your connectivity solutions with this blue twin wire-end ferrule Designed to meet DIN standards, it boasts an 8 mm collar height and 45 mm collar width The ferrule accommodates conductors with a cross-section of 25 mm² Its contact surface features a diameter of 28 mm and measures 12 mm in length Overall, the ferrule extends to 21 mm in length, featuring a metal sleeve thickness of 015 mm and a plastic collar thickness of 0.
4 mm With a stripping length of 15 mm, it is compatible with wire connections up to AWG 14 Perfect for efficient electrical connections and reliable performance.
Features and Benefits:
•Compliant with RoHS regulations without any exemptions.
•Packaged in a multipack bag of 250 items.

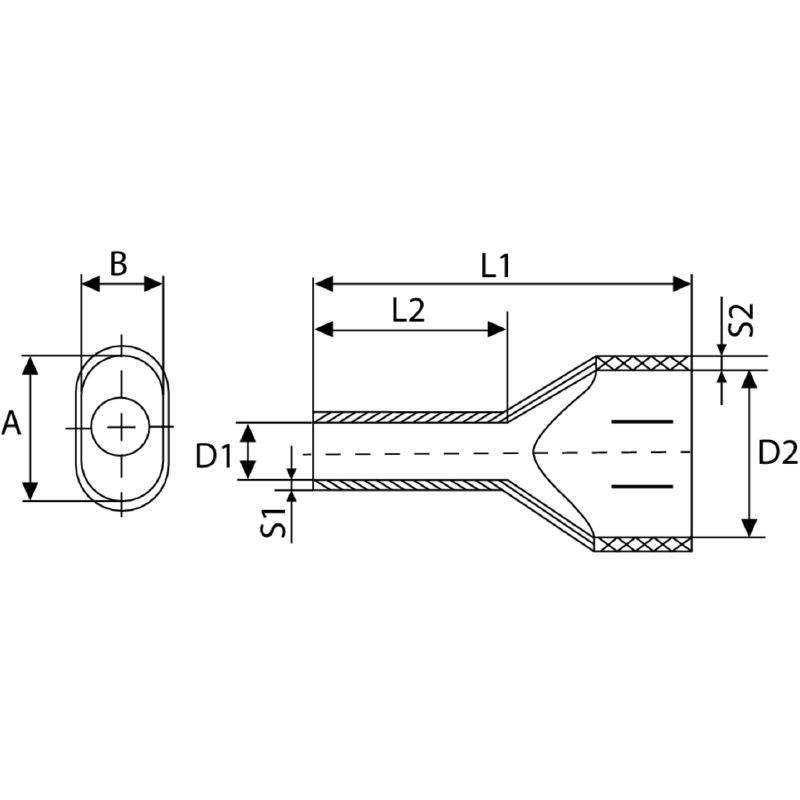

Specifications:
| Collar height (A) | 8 mm |
| Collar width (B) | 4.5 mm |
| Conductor cross-section | 2.5 mm² |
| Contact surface diameter (D1) | 2.8 mm |
| Contact surface length (L2) | 12 mm |
| L1 in mm | 21 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 15 mm |
| Wire connection cross section AWG, max. | AWG 14 |
| GTIN (EAN) | 4008190031923 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
