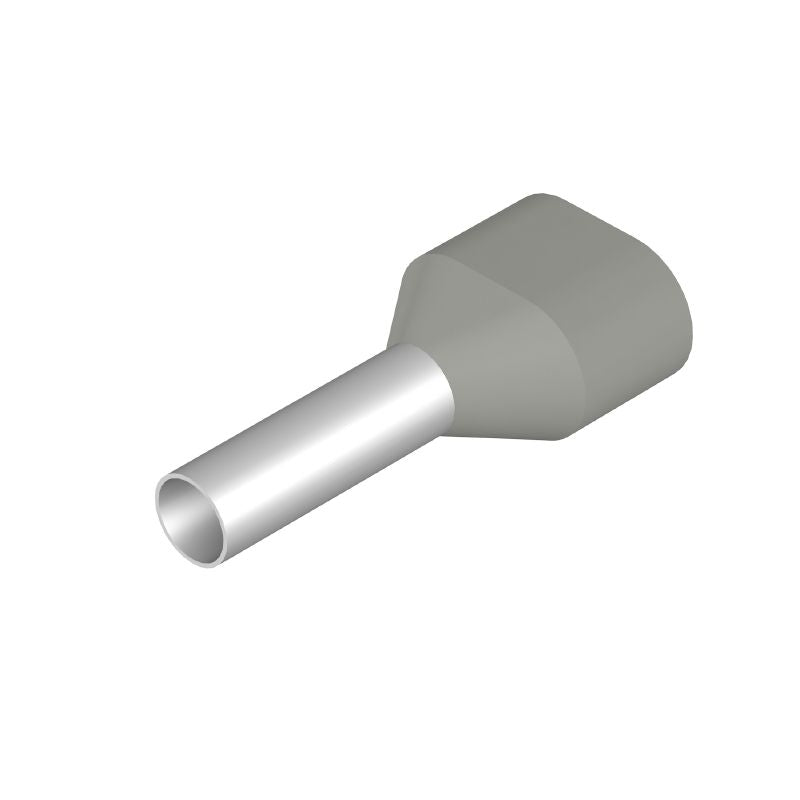

9004730000 - Grey Twin Wire Ferrule for 4mm² Connections, 22mm Long (Pack of 100)
9004730000 - Grey Twin Wire Ferrule for 4mm² Connections, 22mm Long (Pack of 100)
SKU: SKU: 9004730000 Download PDF
- 9004730000 - Grey Twin Wire Ferrule for 4mm² Connections, 22mm Long (Pack of 100)
- 9004730000 - Grey Twin Wire Ferrule for 4mm² Connections, 22mm Long (Pack of 100)
Couldn't load pickup availability
Description:
Elevate your electrical connections with this grey twin wire end ferrule, crafted for optimum performance Tailored for wires with a conductor cross-section of 4 mm², this ferrule guarantees a reliable fit thanks to its collar height of 9 mm and width of 52 mm The contact surface boasts a diameter of 35 mm, and the entire length of the ferrule is 22 mm, including a 12 mm sleeve With a robust metal sleeve thickness of 0.
2 mm and a plastic collar thickness of 05 mm, this ferrule is built to last For effective use, a stripping length of 15 mm is required, and it can support wire connections up to AWG 12.
Features and Benefits:
•Compliant with RoHS without exemption.
•No SVHC present above 0.1 wt%.
•Packed in multipack bags for efficient storage.
Specifications:

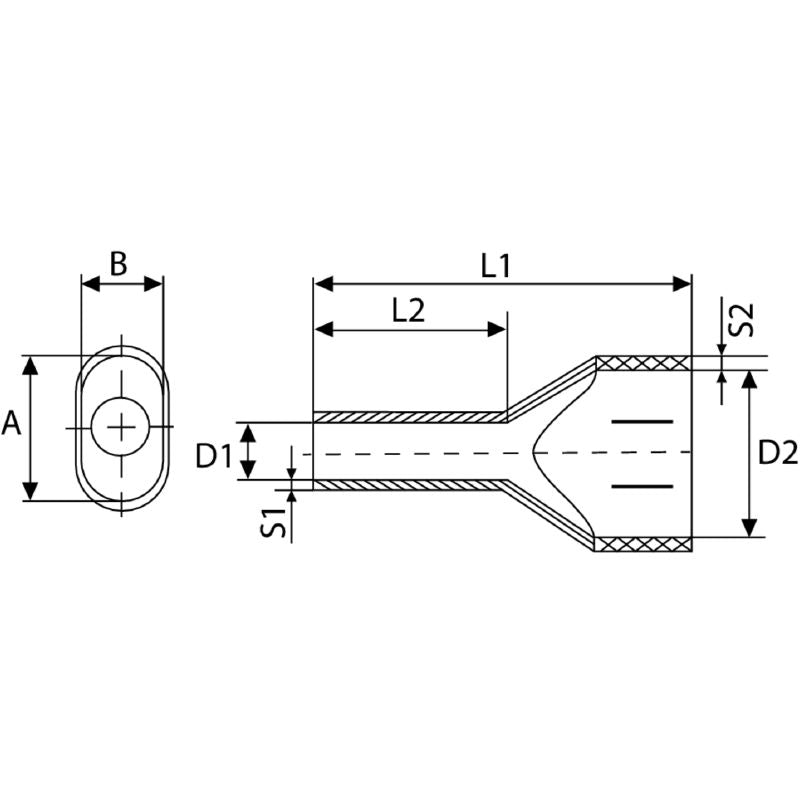

| Collar height (A) | 9 mm |
| Collar width (B) | 5.2 mm |
| Conductor cross-section | 4 mm² |
| Contact surface diameter (D1) | 3.5 mm |
| Contact surface length (L2) | 12 mm |
| Total Length (L1) | 22 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.5 mm |
| Stripping length | 15 mm |
| Wire connection cross section AWG, max | AWG 12 |
| GTIN (EAN) | 4008190161811 |
