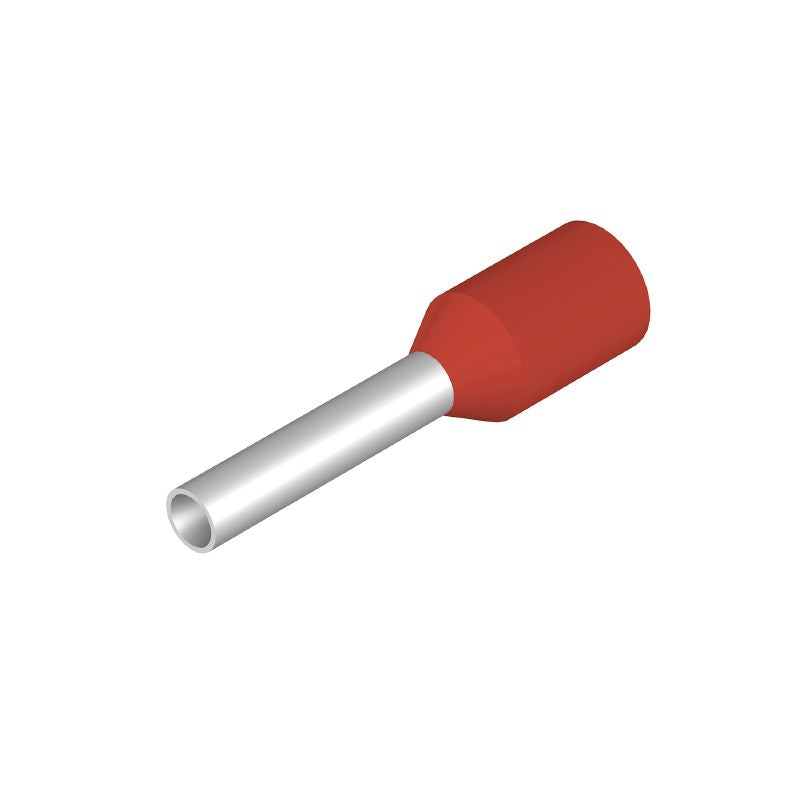

9004330000 - Red Wire-End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
9004330000 - Red Wire-End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
SKU: SKU: 9004330000 Download PDF
- 9004330000 - Red Wire-End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
- 9004330000 - Red Wire-End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
Couldn't load pickup availability
Description:
Introducing our set of red wire-end ferrules, expertly crafted for reliable use and adherence to industry standards Each ferrule has a collar diameter of 3 mm and accommodates a conductor cross-section of 1 mm², ensuring a secure fit The contact surface boasts a diameter of 14 mm and extends 8 mm in length, while the overall length of each ferrule measures 14 mm Constructed with a metal sleeve thickness of 0.
15 mm and a durable plastic collar thickness of 025 mm, these ferrules guarantee dependable connections For optimal installation, a stripping length of 10 mm is required Plus, these products comply with RoHS guidelines for safety and environmental standards.
Features and Benefits:
•Contains linked wire-end ferrules.
•Color-coded red.
•Complies with RoHS standards.
Specifications:
| Collar diameter (D2) | 3 mm |
| Conductor cross-section | 1 mm² |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 17 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
