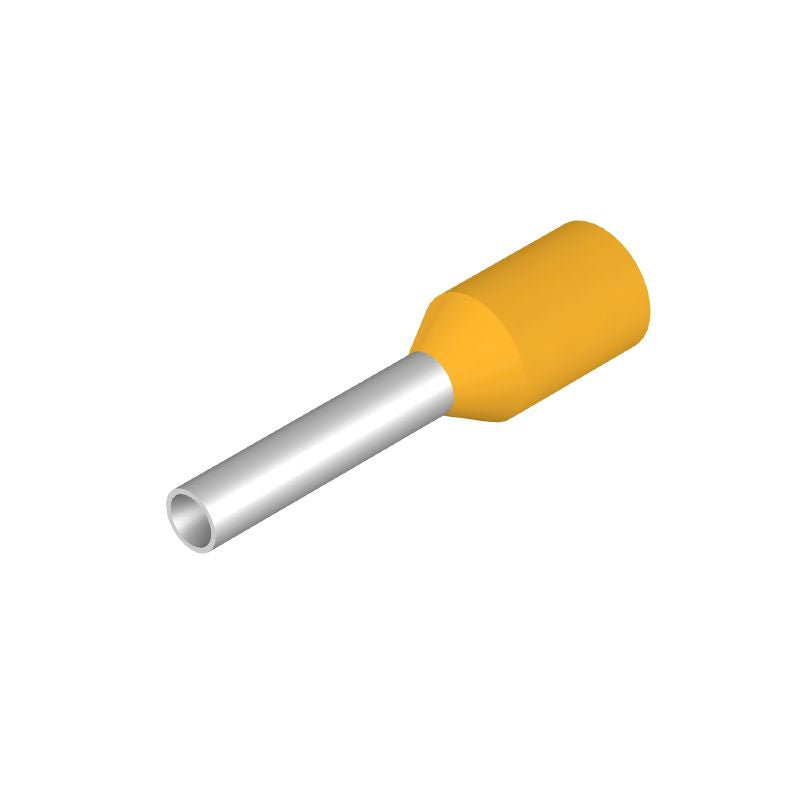

9004320000 - Yellow Wire End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
9004320000 - Yellow Wire End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
SKU: SKU: 9004320000 Download PDF
- 9004320000 - Yellow Wire End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
- 9004320000 - Yellow Wire End Ferrules, 3mm Collar, 14mm Length (Pack of 500)
Couldn't load pickup availability
Description:
Enhance your electrical connections with this pack of yellow wire end ferrules Engineered with a standard design, each ferrule has a collar diameter measuring 3 mm and accommodates a conductor cross-section of 1 mm² The contact surface diameter is 14 mm, while the total length of each ferrule is 14 mm, including a stripping length of 10 mm The metal sleeve boasts a thickness of 015 mm, complemented by a plastic collar thickness of 0.
25 mm Rest assured, these ferrules are RoHS compliant, ensuring safety and environmental standards are met.
Features and Benefits:
•Reel packaged.
•Net weight of 0.097 g.
•Compliant without exemption for RoHS.
•No SVHC above 0.1 wt% for REACH.
Specifications:
| Collar diameter (D2) | 3 mm |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 17 |
| GTIN (EAN) | 4008190167523 |
| Order No. | 9004320000 |
