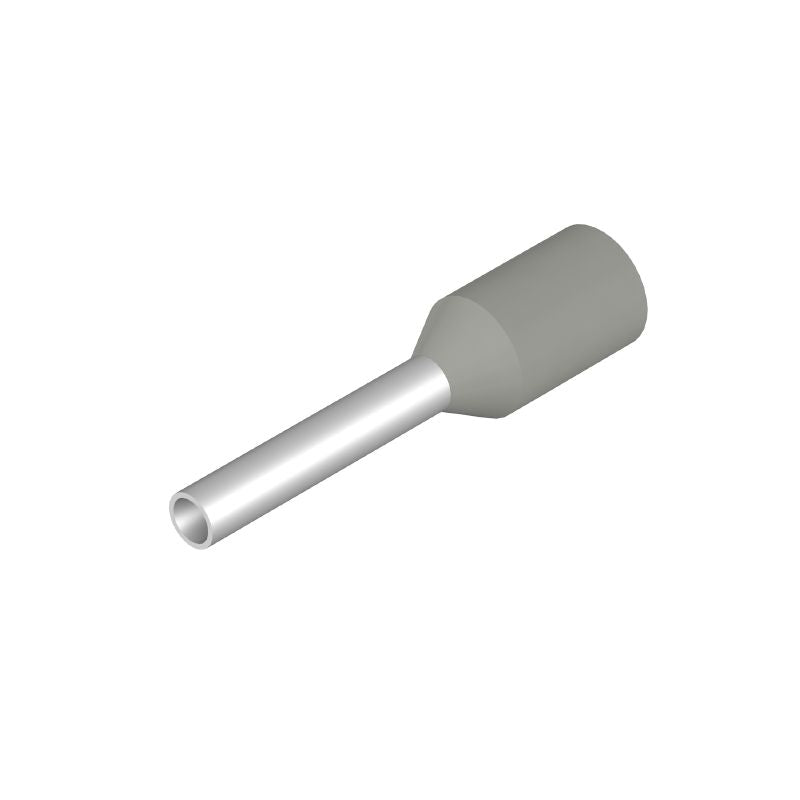

9004300000 - Grey Wire-End Ferrule, 14mm Length, 0.75 mm² Cross-Section (Pack of 500)
9004300000 - Grey Wire-End Ferrule, 14mm Length, 0.75 mm² Cross-Section (Pack of 500)
SKU: SKU: 9004300000 Download PDF
- 9004300000 - Grey Wire-End Ferrule, 14mm Length, 0.75 mm² Cross-Section (Pack of 500)
- 9004300000 - Grey Wire-End Ferrule, 14mm Length, 0.75 mm² Cross-Section (Pack of 500)
Couldn't load pickup availability
Description:
Elevate your electrical projects with this grey linked wire-end ferrule, meticulously crafted for reliable connections It accommodates a collar diameter of 28 mm and is compatible with a conductor cross-section of 075 mm² With a contact surface diameter of 12 mm and an overall length of 14 mm, this ferrule measures 8 mm in length, offering precision and performance The metal sleeve boasts a thickness of 0.
15 mm, while the plastic collar is 025 mm thick Designed for maximum efficiency, it features a stripping length of 10 mm and supports wire connection cross-sections up to AWG 18.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Packed in reels for convenient handling.
•Standard design suitable for various applications.
Specifications:
| Collar diameter (D2) | 2.8 mm |
| Contact surface diameter (D1) | 1.2 mm |
| Contact surface length (L2) | 8 mm |
| Overall length (L1) | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Conductor cross-section | 0.75 mm² |
| Wire connection cross section AWG, max. | AWG 18 |
| Version | Standard |
| GTIN (EAN) | 4008190154837 |
| UL File Number | E499744 |
