9004180000 - 9.5mm x 32mm Ferrule for 25mm² Conductors (Pack of 100)
9004180000 - 9.5mm x 32mm Ferrule for 25mm² Conductors (Pack of 100)
SKU: SKU: 9004180000 Download PDF
Select a Variant:
- 9004180000 - 9.5mm x 32mm Ferrule for 25mm² Conductors (Pack of 100)
- 9004180000 - 9.5mm x 32mm Ferrule for 25mm² Conductors (Pack of 100)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

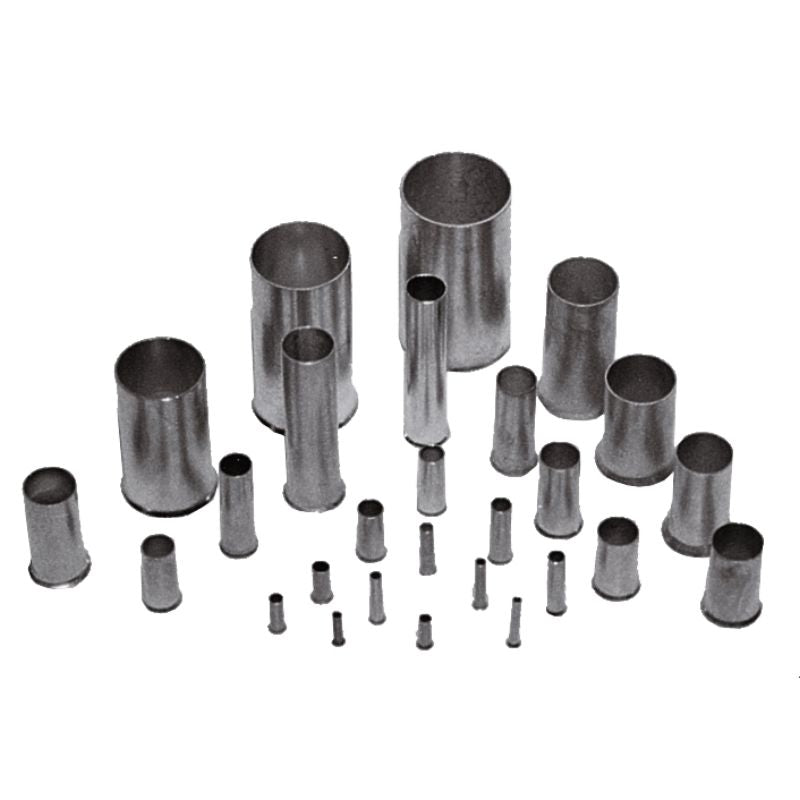

This wire end ferrule, presented in a standard design, lacks a plastic collar for a straightforward solution It accommodates conductor cross-sections of 25 mm² and has a collar diameter measuring 95 mm The contact surface is 73 mm in diameter, and the overall length of the ferrule is 32 mm For optimal performance, a wire stripping length of 32 mm is recommended, which is also suitable for connections up to an AWG 3 wire size.
Features and Benefits:
•RoHS compliant without exemption.
•Loose packaging.
•Net weight of 1.2 g.
Specifications:
| Order No. | 9004180000 |
| GTIN (EAN) | 4008190113162 |

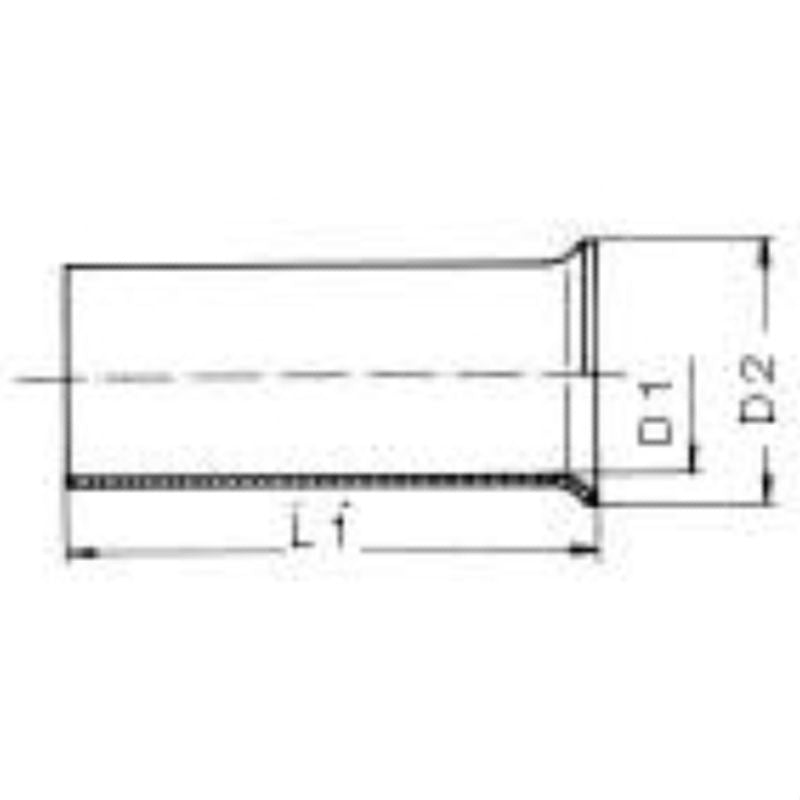

| Collar diameter (D2) | 9.5 mm |
| Conductor cross-section | 25 mm² |
| Contact surface diameter (D1) | 7.3 mm |
| Contact surface length (L2) | 32 mm |
| L1 in mm | 32 mm |
| Stripping length | 32 mm |
| Wire connection cross section AWG, max. | AWG 3 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
