9004170000 - Standard 25mm Wire-End Ferrule with 9.5mm Collar Diameter (Pack of 250)
9004170000 - Standard 25mm Wire-End Ferrule with 9.5mm Collar Diameter (Pack of 250)
SKU: SKU: 9004170000 Download PDF
- 9004170000 - Standard 25mm Wire-End Ferrule with 9.5mm Collar Diameter (Pack of 250)
- 9004170000 - Standard 25mm Wire-End Ferrule with 9.5mm Collar Diameter (Pack of 250)
Couldn't load pickup availability
Description:

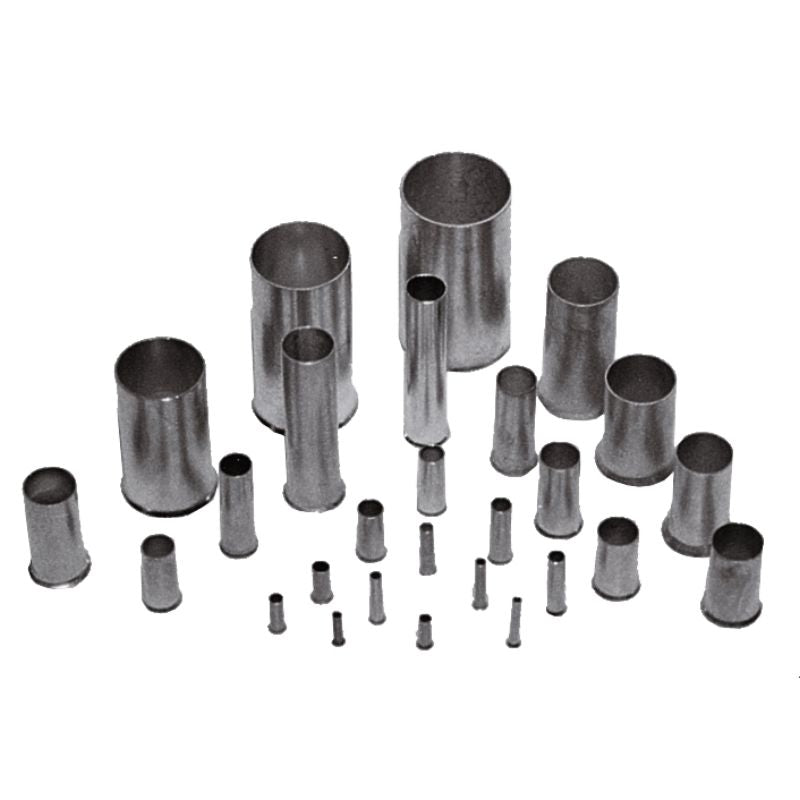

This wire end ferrule comes without a plastic collar and is crafted for everyday applications It boasts a collar diameter of 95 mm, making it compatible with conductor cross-sections of 25 mm² The contact surface has a diameter of 73 mm and measures 25 mm in length For optimal usage, the wire should be stripped to a length of 25 mm, and it can connect wires with a maximum cross-section of AWG 3 Additionally, this product is fully compliant with RoHS standards and contains no Substances of Very High Concern (SVHC) above 0.
1 wt%.
Features and Benefits:
•Net weight of 1.1 g.
•Loose packaging.
•Compliant with RoHS.
•No SVHC above 0.1 wt%.
Specifications:

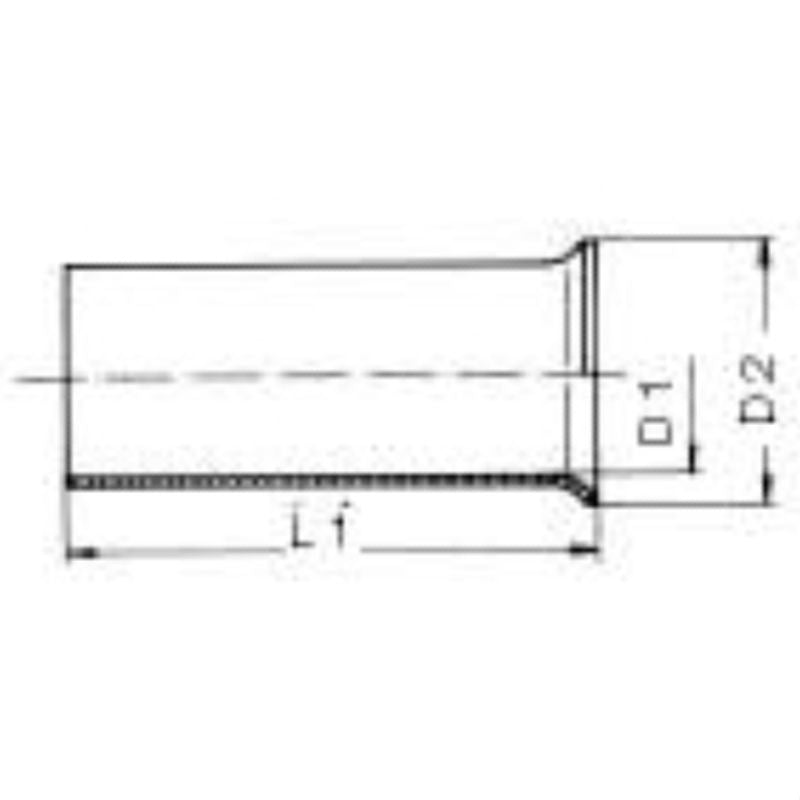

| Collar diameter (D2) | 9.5 mm |
| Conductor cross-section | 25 mm² |
| Contact surface diameter (D1) | 7.3 mm |
| Contact surface length (L2) | 25 mm |
| L1 in mm | 25 mm |
| Stripping length | 25 mm |
| Wire connection cross section AWG, max. | AWG 3 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
