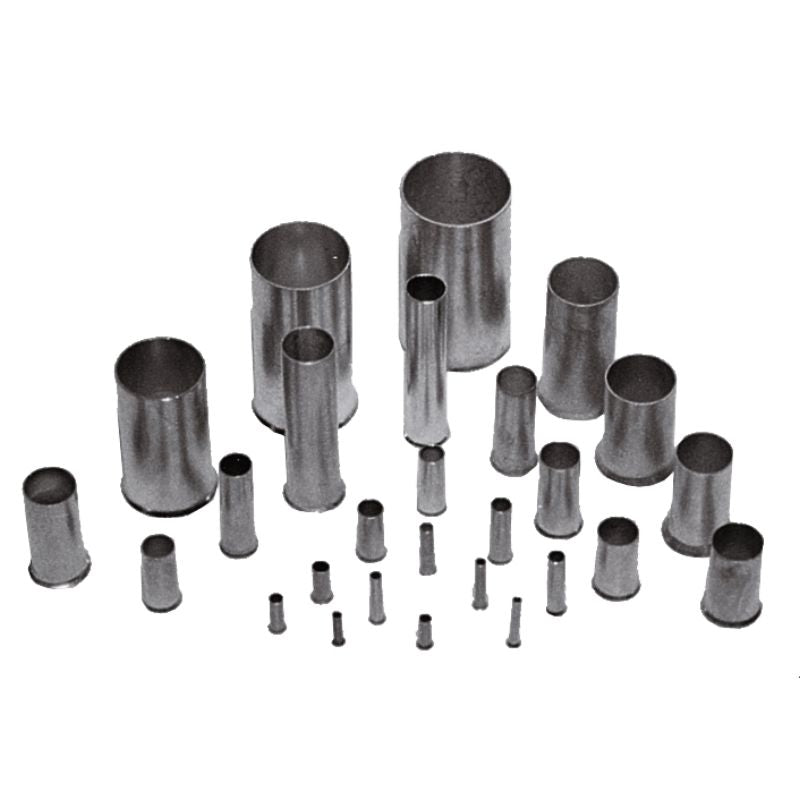

9004160000 - 32mm Wire End Ferrule, 16mm² Conductor, No Collar (Pack of 100)
9004160000 - 32mm Wire End Ferrule, 16mm² Conductor, No Collar (Pack of 100)
SKU: SKU: 9004160000 Download PDF
- 9004160000 - 32mm Wire End Ferrule, 16mm² Conductor, No Collar (Pack of 100)
- 9004160000 - 32mm Wire End Ferrule, 16mm² Conductor, No Collar (Pack of 100)
Couldn't load pickup availability
Description:
Introducing a wire end ferrule designed specifically for efficient wiring tasks, devoid of a plastic collar This model includes both standard and dual wire-end ferrules with a collar diameter measuring 75 mm Capable of accommodating a conductor cross-section of 16 mm², it features a contact surface diameter of 58 mm along with a length of 32 mm The stripping length matches this at 32 mm, making it suitable for connections with a maximum AWG of 6, ensuring reliability in your wiring applications.
Features and Benefits:
•Loose packaging with 100 items per order.
•RoHS compliant without exemptions.
•REACH SVHC compliant with no SVHC above 0.1 wt%.
Specifications:

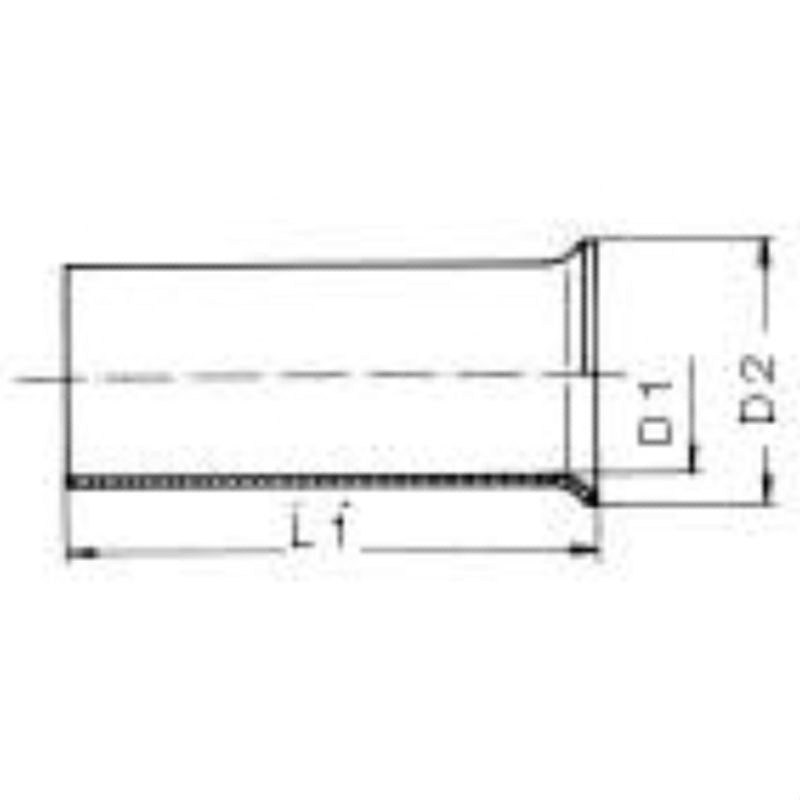

| Collar diameter (D2) | 7.5 mm |
| Conductor cross-section | 16 mm² |
| Contact surface diameter (D1) | 5.8 mm |
| Contact surface length (L2) | 32 mm |
| L1 in mm | 32 mm |
| Stripping length | 32 mm |
| Wire connection cross section AWG, max. | AWG 6 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
