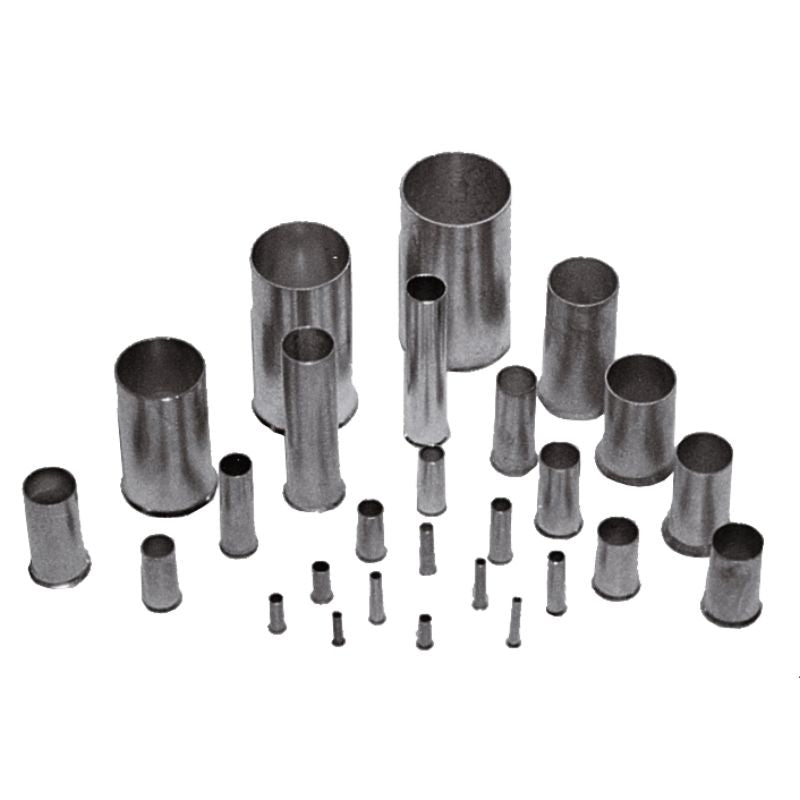

9004130000 - 6mm² Wire Ferrule, 18mm Length, No Collar (Pack of 500)
9004130000 - 6mm² Wire Ferrule, 18mm Length, No Collar (Pack of 500)
SKU: SKU: 9004130000 Download PDF
- 9004130000 - 6mm² Wire Ferrule, 18mm Length, No Collar (Pack of 500)
- 9004130000 - 6mm² Wire Ferrule, 18mm Length, No Collar (Pack of 500)
Couldn't load pickup availability
Description:
Optimize your connections with this wire end ferrule, crafted without a plastic collar for a clean, standard design The collar diameter measures 47 mm, while the contact surface has a diameter of 35 mm and a length of 18 mm, mirroring the required stripping length This ferrule accommodates conductor cross-sections up to 6 mm² and is compatible with maximum wire connection sizes of AWG 10 Weighing just 0.
35 grams, it meets RoHS standards, free from any exempted substances and SVHC presence exceeding the 01% weight limit.
Features and Benefits:
•Wire end ferrule without plastic collar.
•RoHS compliant.
•REACH SVHC free.

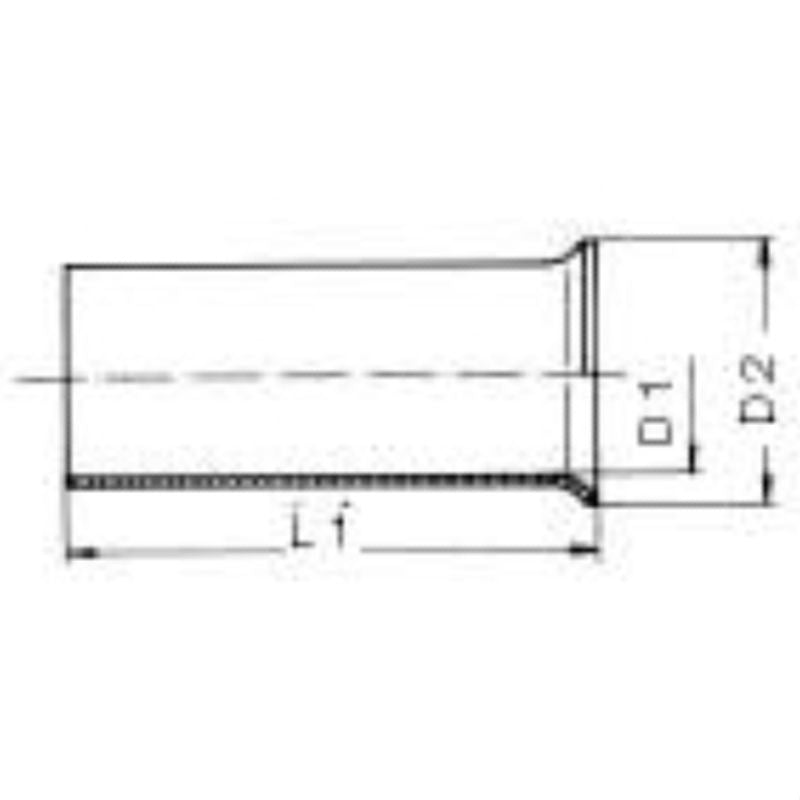

Specifications:
| Wire-end ferrule version | Standard |
| Collar diameter (D2) | 4.7 mm |
| Conductor cross-section | 6 mm² |
| Contact surface diameter (D1) | 3.5 mm |
| Contact surface length (L2) | 18 mm |
| Stripping length | 18 mm |
| Wire connection cross section AWG, max | AWG 10 |
| ETIM classifications | {'ETIM 6.0': 'EC000005', 'ETIM 7.0': 'EC000005', 'ETIM 8.0': 'EC000005', 'ETIM 9.0': 'EC000005', 'ETIM 10.0': 'EC000005'} |
| ECLASS classifications | {'ECLASS 9.0': '27-40-02-01', 'ECLASS 9.1': '27-40-02-01', 'ECLASS 10.0': '27-40-02-01', 'ECLASS 11.0': '27-40-02-01', 'ECLASS 12.0': '27-40-02-01', 'ECLASS 13.0': '27-40-02-01', 'ECLASS 14.0': '27-40-02-01', 'ECLASS 15.0': '27-40-02-01'} |
| UL Certificate No. | E499744 |
