9004090000 - 18mm Wire End Ferrule, 2.2mm Surface, RoHS Compliant (Pack of 1000)
9004090000 - 18mm Wire End Ferrule, 2.2mm Surface, RoHS Compliant (Pack of 1000)
SKU: SKU: 9004090000 Download PDF
- 9004090000 - 18mm Wire End Ferrule, 2.2mm Surface, RoHS Compliant (Pack of 1000)
- 9004090000 - 18mm Wire End Ferrule, 2.2mm Surface, RoHS Compliant (Pack of 1000)
Couldn't load pickup availability
Description:

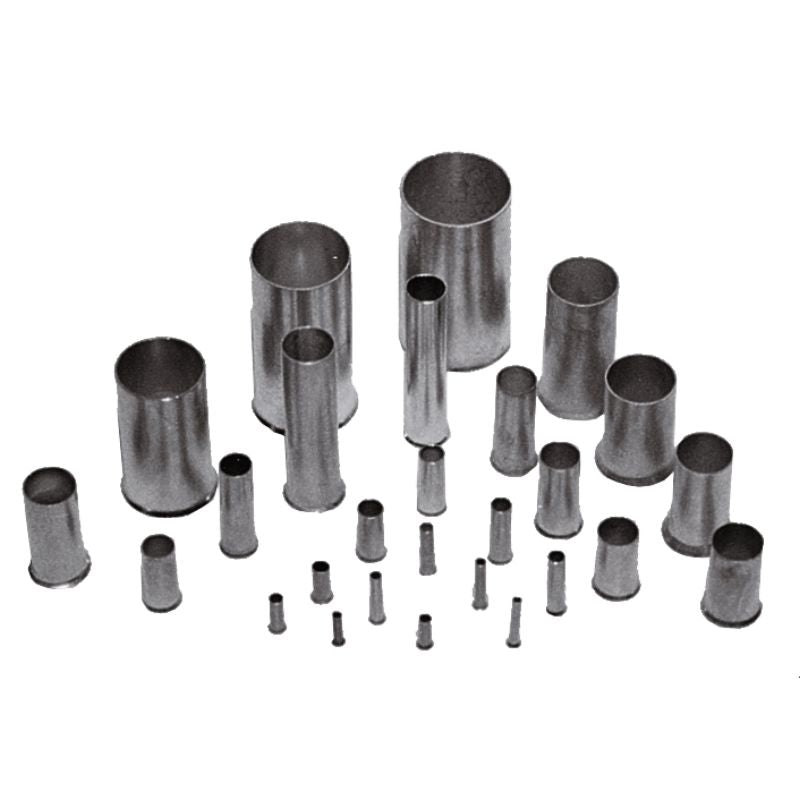

Discover the versatility of this wire end ferrule, designed in a standard configuration With a collar diameter measuring 34 mm and a contact surface diameter of 22 mm, it ensures secure connections The length of the contact surface is 18 mm, matching the stripping length for optimal performance This ferrule supports a maximum conductor cross-section of AWG 14 Supplied loose, each order contains 1,000 units, making it perfect for bulk usage.
It meets RoHS standards with no exemptions and contains no substances of very high concern (SVHC) above 01 wt%.
Features and Benefits:
•Complies with RoHS without exemption.
•Available in a loose packaging format.
•Accommodates AWG 14 conductor cross-section.
Specifications:

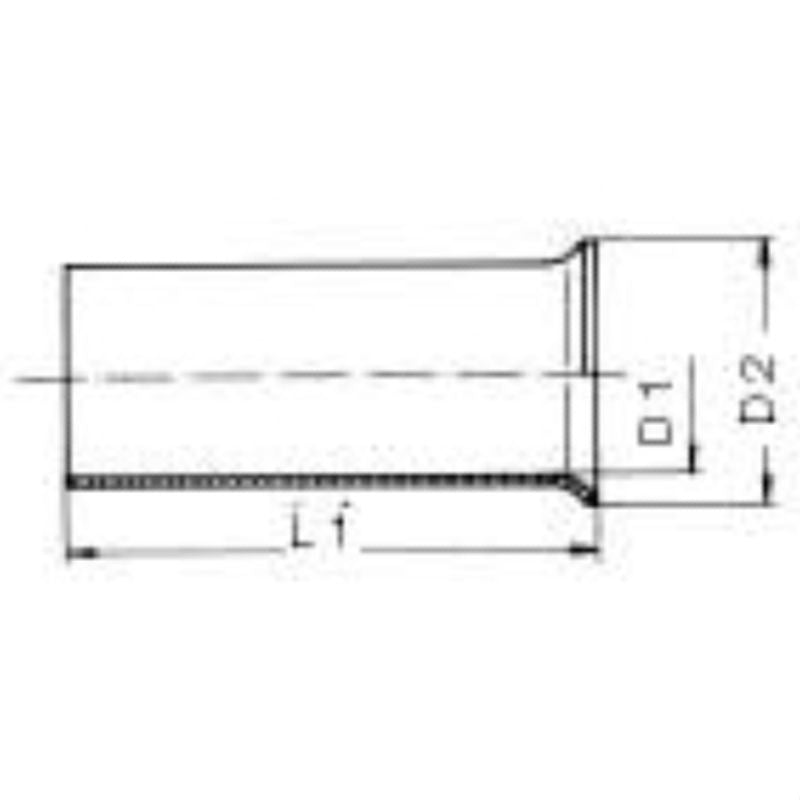

| Wire-end ferrule description | Wire end ferrule without plastic collar |
| Collar diameter (D2) | 3.4 mm |
| Conductor cross-section | 2.5 mm² |
| Contact surface diameter (D1) | 2.2 mm |
| Contact surface length (L2) | 18 mm |
| Length (L1) | 18 mm |
| Stripping length | 18 mm |
| Wire connection cross section AWG, max. | AWG 14 |
| GTIN (EAN) | 4008190147921 |
| Net weight | 0.178 g |
| ETIM classification | {'ETIM 6.0': 'EC000005', 'ETIM 7.0': 'EC000005', 'ETIM 8.0': 'EC000005', 'ETIM 9.0': 'EC000005', 'ETIM 10.0': 'EC000005'} |
| ECLASS classification | {'ECLASS 9.0': '27-40-02-01', 'ECLASS 9.1': '27-40-02-01', 'ECLASS 10.0': '27-40-02-01', 'ECLASS 11.0': '27-40-02-01', 'ECLASS 12.0': '27-40-02-01', 'ECLASS 13.0': '27-40-02-01', 'ECLASS 14.0': '27-40-02-01', 'ECLASS 15.0': '27-40-02-01'} |
