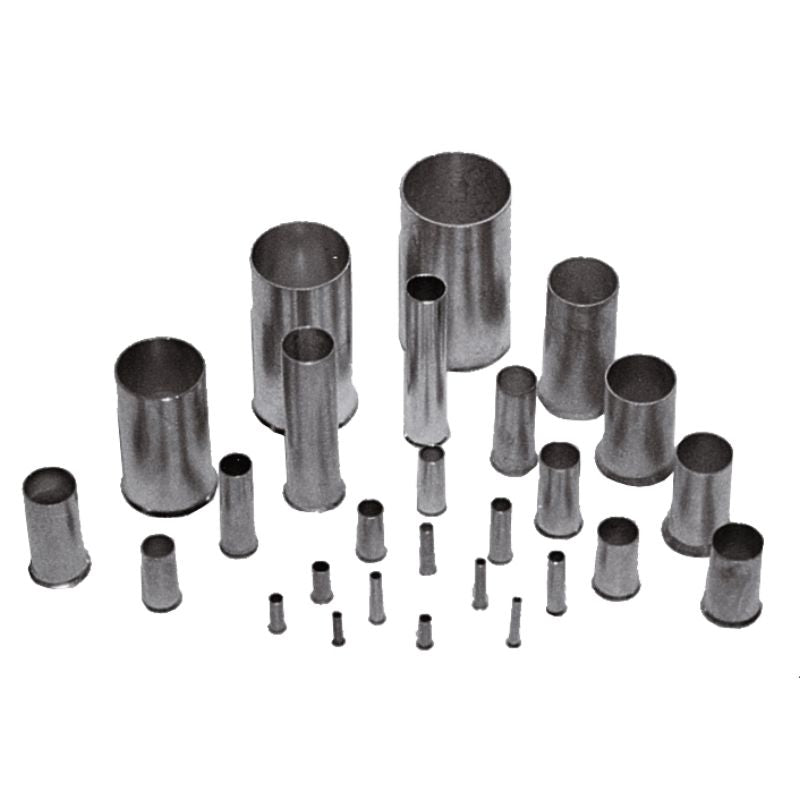

9004060000 - 12mm Wire End Ferrule, 1.5mm² for AWG 16 Connections (Pack of 1000)
9004060000 - 12mm Wire End Ferrule, 1.5mm² for AWG 16 Connections (Pack of 1000)
SKU: SKU: 9004060000 Download PDF
- 9004060000 - 12mm Wire End Ferrule, 1.5mm² for AWG 16 Connections (Pack of 1000)
- 9004060000 - 12mm Wire End Ferrule, 1.5mm² for AWG 16 Connections (Pack of 1000)
Couldn't load pickup availability
Description:
Ensure reliable wire connections with this wire end ferrule, designed without a plastic collar for streamlined performance It features a collar diameter of 28 mm and a contact surface diameter of 17 mm Rated for a conductor cross-section of 15 mm², this ferrule boasts a generous contact surface length of 12 mm and a matching stripping length of 12 mm Compatible with wire gauges up to AWG 16, it’s an essential component for efficient wiring applications.
Features and Benefits:
•Compliant with RoHS without any exemptions.
•REACH SVHC free above 0.1 wt%.

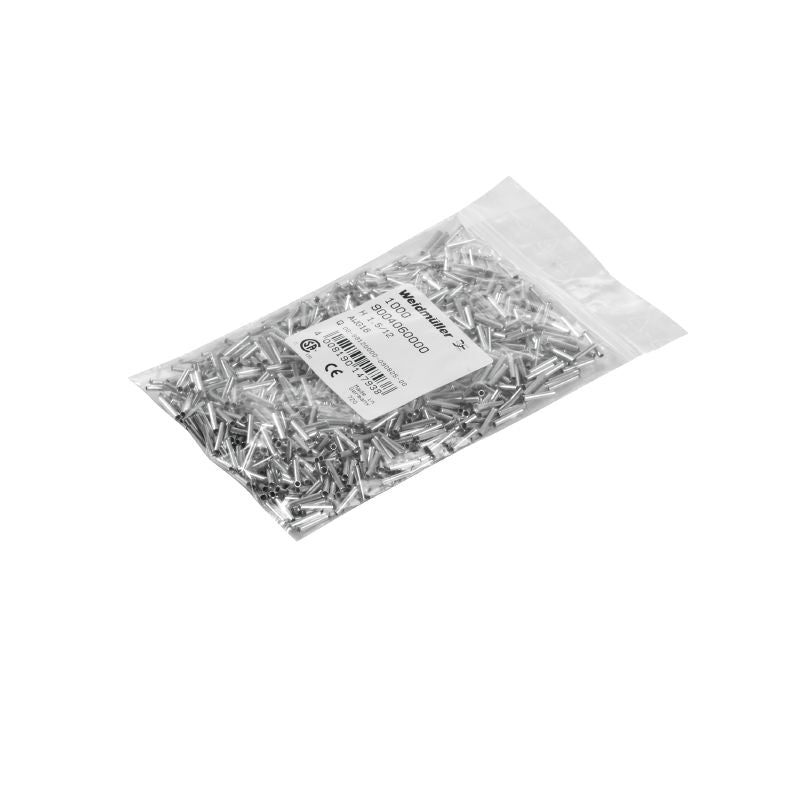

•Available in packaging of 1,000 items loose.
Specifications:

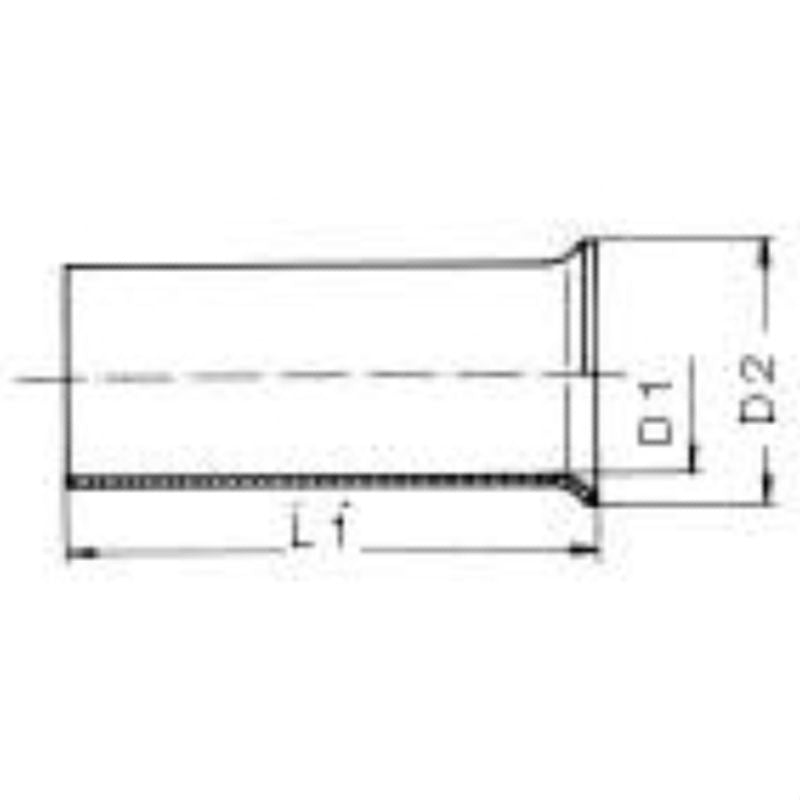

| Collar diameter (D2) | 2.8 mm |
| Conductor cross-section | 1.5 mm² |
| Contact surface diameter (D1) | 1.7 mm |
| Contact surface length (L2) | 12 mm |
| L1 in mm | 12 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 16 |
| GTIN (EAN) | 4008190147938 |
| Order No. | 9004060000 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
