8951230000 - UL Certified Solid-State Relay, 48-60V AC, 0.1A Output (Pack of 10)
8951230000 - UL Certified Solid-State Relay, 48-60V AC, 0.1A Output (Pack of 10)
SKU: SKU: 8951230000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the TOS solid-state relay, designed for reliable performance with a control voltage range of 48 to 60 V AC ±20% This versatile relay can switch voltages from 24 to 230 V AC and supports a continuous current of 01 A Its secure screw connection guarantees a stable attachment Additionally, this product boasts UL certification (certificate number E223474) and meets ROHS compliance standards, ensuring both safety and quality.
Features and Benefits:
•Screw connection for reliable connectivity.
•Nominal control current of 6.4 mA AC.
•Green LED status indicator.

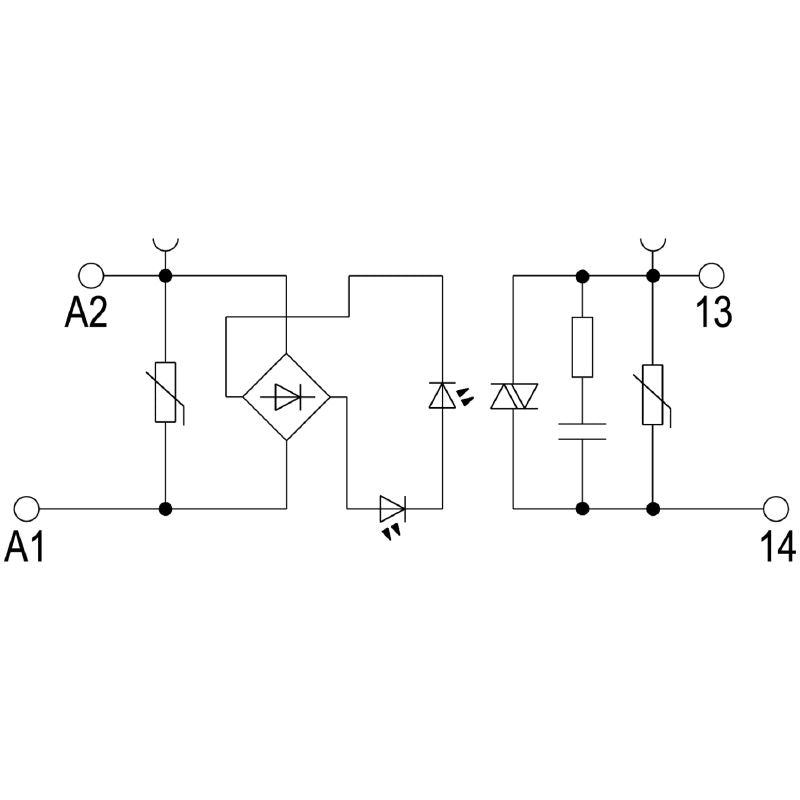

•Varistor protective circuit.
•Short-circuit-proof design.

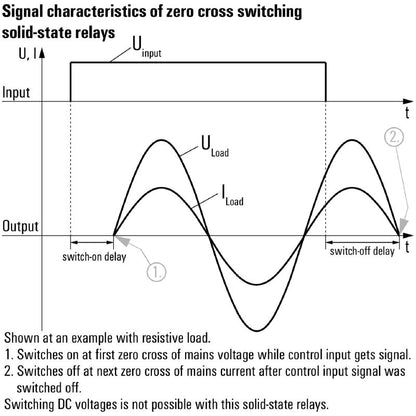

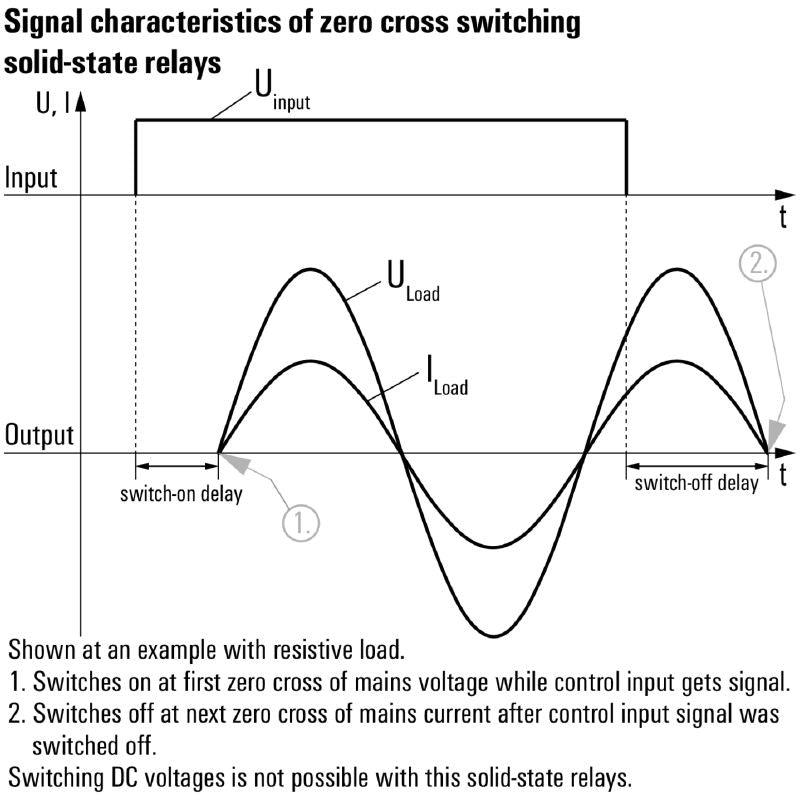

•1 NO contact type with a triac for zero-cross switching.
Specifications:
| Rated control voltage | 48…60 V AC ±20 % |
| Power rating | ≤ 0.3 VA |
| Load category | AC1 |
| Rated switching voltage | 24...230 V AC |
| Continuous current | 0.1 A (AC1) |
| Switch-on delay | <14 ms |
| Switch-off delay | <16 ms |
| Voltage drop at max. load | <1.8 V |
| Leakage current | <1 mA |
| Min. switching current | 2 mA |
| Max. switching voltage, AC | 230 V |
| Ambient temperature | -20 °C…60 °C |
| Storage temperature | -40 °C...80 °C |
| Humidity | 5-95% relative humidity without condensation |
| Dielectric strength | 1.2 kV for 1 min. |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Mounting rail | TS 35 |
