Description:
The RCLKITZ 24VDC 1CO LED relay module is expertly designed with a single changeover contact made from AgNi It operates efficiently with a control voltage of 24 V DC and supports a continuous current of up to 12 A This module is equipped with a secure tension-clamp connection but does not incorporate a test button Note that it will remain available for ordering until September 30, 2025, as it will not be restocked afterward.
Its compact dimensions measure 69 mm in depth, 97 mm in height, and 16 mm in width, with a lightweight construction of around 55176 g Capable of functioning in extreme temperatures ranging from -40 °C to 70 °C, it also handles humidity levels of up to 93%, making it a reliable choice for diverse applications.
Features and Benefits:
•Tension-clamp connection.

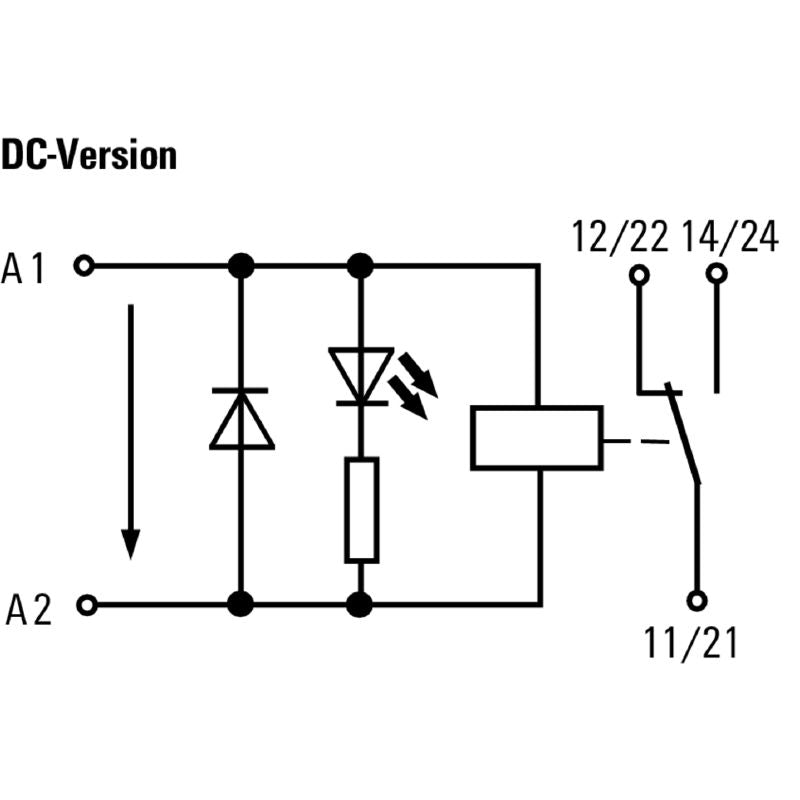

•Status indicator with green LED.
•Protection degree of IP20.
Specifications:

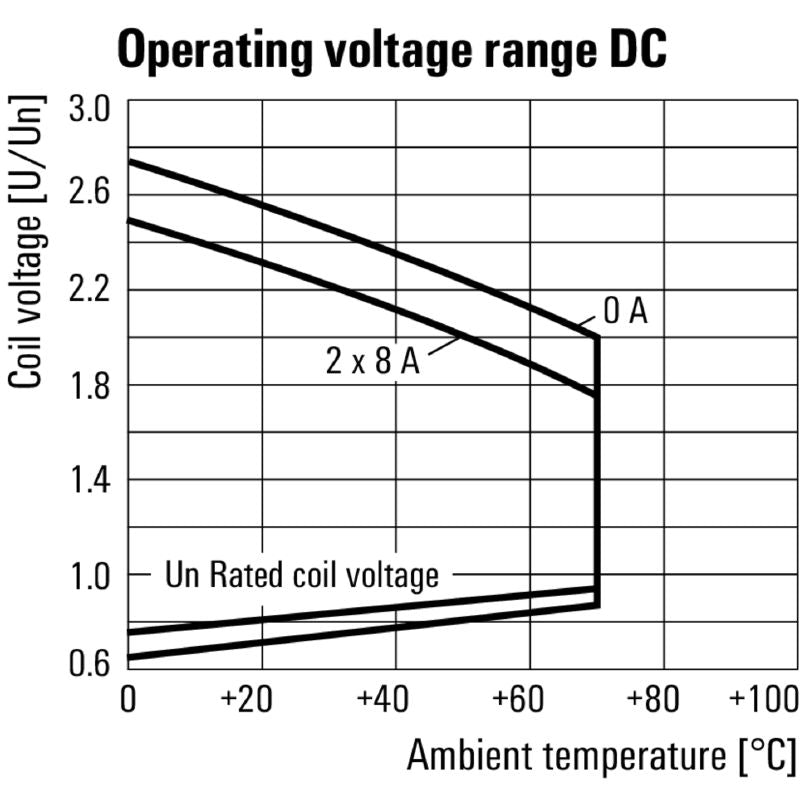

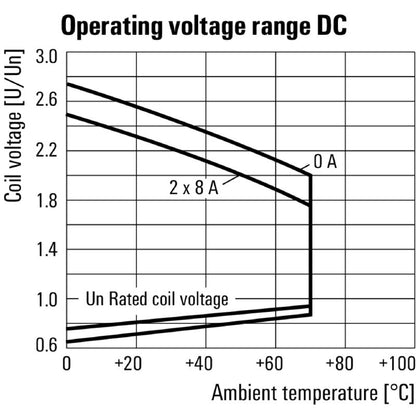

| Rated control voltage | 24 V DC |
| Rated current DC | 16.7 mA |
| Power rating | 500 mW |
| Coil resistance | 1440 Ω ± 10 % |
| Rated switching voltage | 250 V AC |
| Continuous current | 16 A |
| Min. switching power | 1 mA @ 24 V; 10 mA @ 12 V; 100 mA @ 5 V |
| Inrush current | 30 A / 4 s |
| AC switching capacity (resistive), max. | 4000 VA |

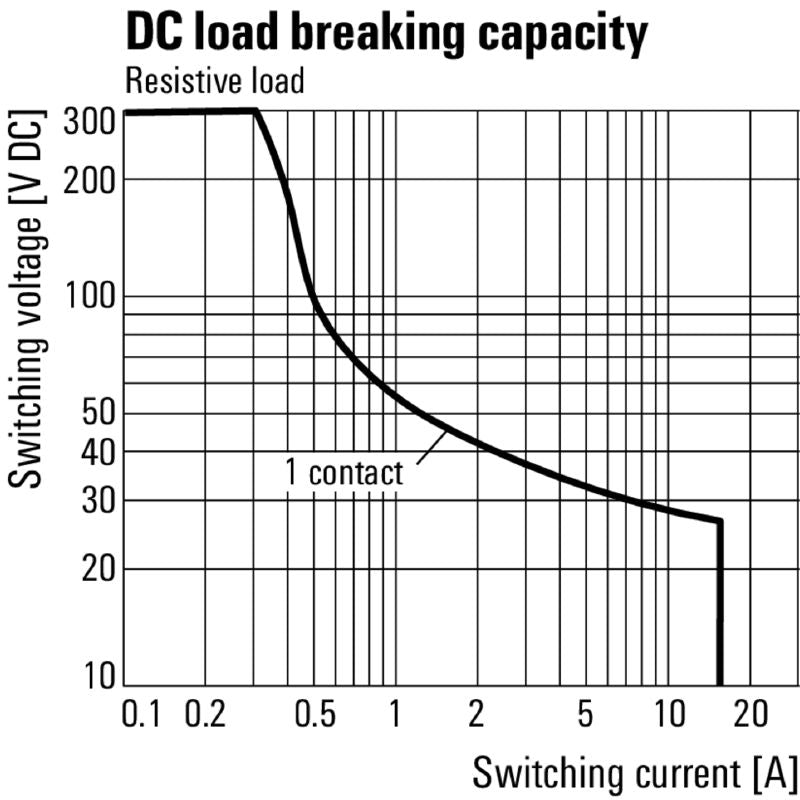

| DC switching capacity (resistive), max. | 384 W @ 24 V |
| Switch-on delay | ≤ 7 ms |
| Switch-off delay | ≤ 4 ms |
| Contact type | 1 CO contact (AgNi) |
| Mechanical service life | DC coil 30 x 10^6 switching cycles |
| Mounting rail | TS 35 |
| UL 94 flammability rating | V-2 |
| Insulation coordination | {'Rated voltage': '250 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Insulating material group': 'C', 'Creepage and clearance distance input – output': '≥ 10 mm', 'Dielectric strength, Input/Output': '5 kV eff / 1min'} |
| Wire connection method | Tension-clamp connection |
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 1.5 mm² |
| Blade size | 0.4 x 2.5 mm |
