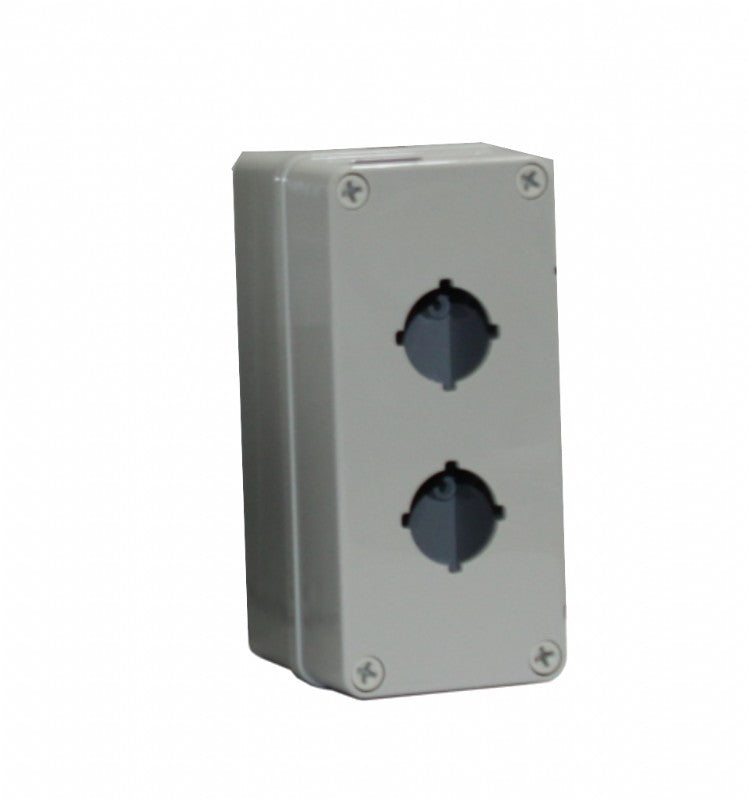

8754308 Polycarbonate Pushbutton Enclosure

8754308 Polycarbonate Pushbutton Enclosure

SKU: UL PBPC D 85 G 2   Download PDF

Qty:
Now $8,121.00   Web pricing policy
BEFORE   Now $8,121.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

67 x 31 x 33 inch polycarbonate pushbutton enclosure with an opaque cover This enclosure includes two (2), 305 mm pushbutton cut outs and is made of durable polycarbonate material.

Features and Benefits:

    •Constructed from polycarbonate for durability.

    •Includes opaque cover.

    •Compatible with UL/cUL Type 1, 4, 4X, 6, 12, and 13.

    •IP66 / IP67 rated for ingress protection.

    •IK08 impact resistance rating.

Specifications:

 Height (inch): 6.7
 Width (inch): 3.1
 Depth (inch): 3.3
 Height (mm): 170
 Width (mm): 80
 Depth (mm): 85
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: UL/cUL Type 1, 4, 4X, 6, 12, and 13
 Ingress Protection (EN 60529): IP66 / IP67
 Impact Resistance (EN 62262): IK08
 Electrical insulation: Totally insulated
 Halogen free (DIN/VDE 0472, Part 815): No
 UV resistance: UL 508
 Flammability Rating: UL 746C 5
 Glow Wire Test (IEC 60695): 960 °C
