8714019 UL PC MH 125 T

8714019 UL PC MH 125 T

SKU: UL PC MH 125 T Download PDF

Now $13,320.00
BEFORE   Now $13,320.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

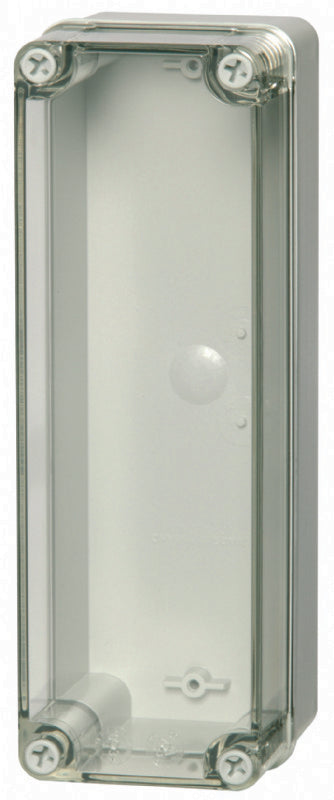

91 x 55 x 49 inch polycarbonate enclosure with a transparent cover.

Features and Benefits:

    •UL Type 1, 4, 4X, 6, 12, and 13 rated.

    •Ingress Protection IP66 / IP67.

    •Impact Resistance IK08.

    •Electric insulation is totally insulated.

    •Halogen free certification not applicable.

    •UV resistance under UL 508.

    •Meets Flammability Rating UL 746C 5.

Specifications:

 Dimensions (Height x Width x Depth): 9.1 x 5.5 x 4.9 inch
 Dimensions (Height x Width x Depth in mm): 230 x 140 x 125 mm
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature (Continuous in °F): -40 … 175
 Temperature (Continuous in °C): -40 … 80
 Glow Wire Test (IEC 60695): 960 °C
