8561842 Protection Window - HMI Cover

8561842 Protection Window - HMI Cover

SKU: AR IPW 1412 SC F Download PDF

Now $18,659.00
BEFORE   Now $18,659.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

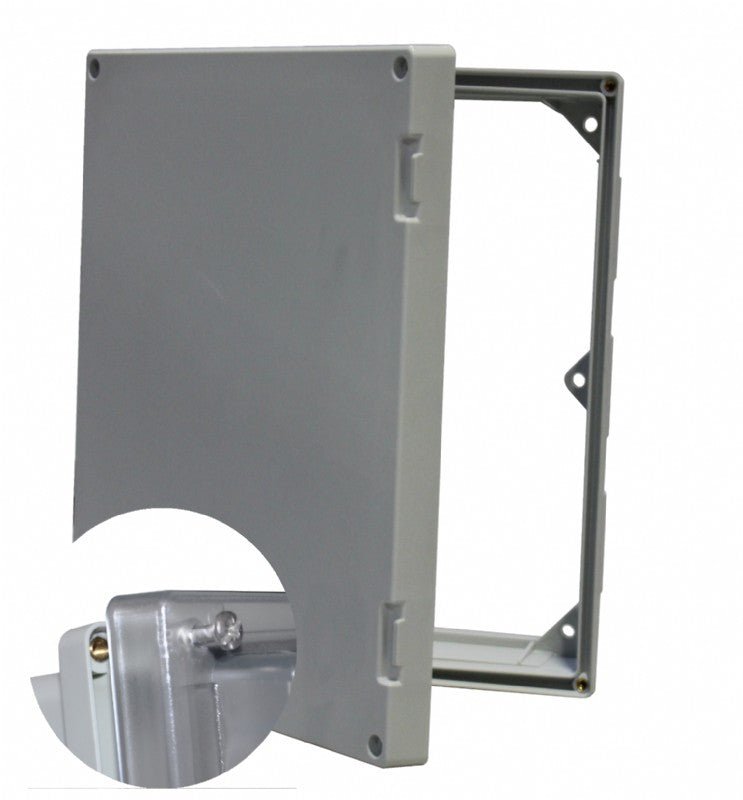

Opaque flat hinged screw locking cover Protection Window offers durable shielding with a stylish design, ensuring high protection ratings across various conditions Ideal for HMI applications and environments requiring stringent safety and durability measures.

Features and Benefits:

    •Durable polycarbonate material offers robust protection.

    •Base color in RAL 7035-light grey for aesthetics and functionality.

    •Cover color is transparent for visibility while ensuring safety.

    •Operates effectively in temperature ranges from -40 °F to 175 °F.

    •Suitable for UL/cUL Type ratings: 4, 4X, 6, 6P, 12, 12K and 13.

    •High ingress protection rating of IP66; IP67 for maximum dust and water resistance.

    •Impact resistance rating of IK09 ensures reliability under stress.

    •Halogen-free material ensures safety in various environments.

    •UV resistance complies with UL 508 standards for longevity.

    •Superior flammability rating of UL94-5VA (f1) provides enhanced safety.

    •Designed for HMI cover applications in industrial environments.

    •Suitable for use in areas requiring high ingress and impact protection.

    •Ideal for outdoor settings due to its UV resistance and durability.

Specifications:

 Dimensions (inch): 14 x 12 x 3.31
 Dimensions (mm): 350 x 300 x 88
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature (continuous) °F: -40 … 175
 Temperature (continuous) °C: -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Halogen free: Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695): 960 °C
