8561841 Protection Window - HMI Cover

8561841 Protection Window - HMI Cover

SKU: AR IPW 1412 B F Download PDF

Now $18,487.00
BEFORE   Now $18,487.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

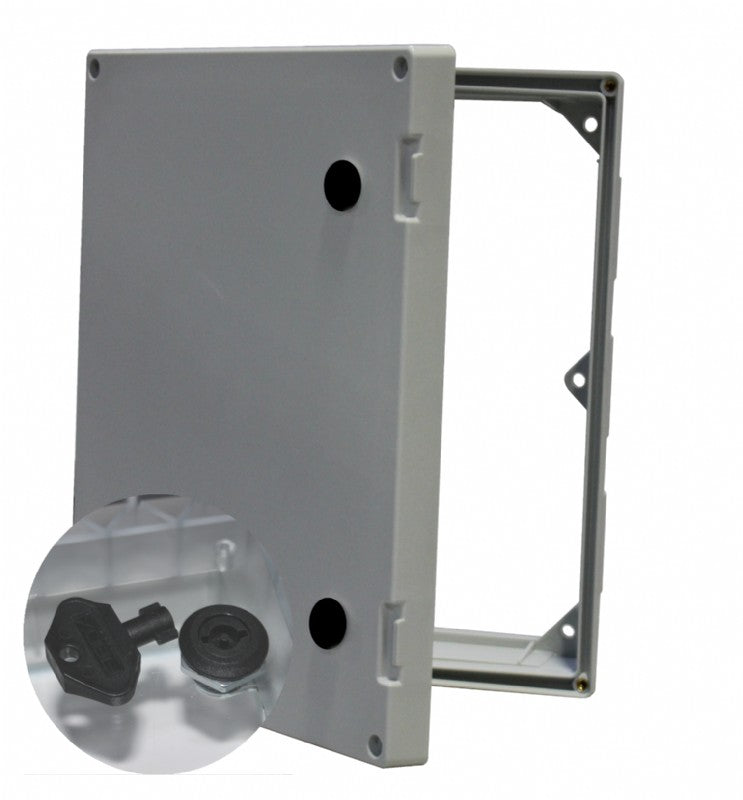

Opaque flat covers with 3mm qtr turn bit locks The protection window is designed to meet various ratings including UL Types and provides a reliable solution for environments requiring a high level of ingress protection and impact resistance It is constructed from durable polycarbonate, ensuring robust performance across a wide temperature range.

Features and Benefits:

    •Opaque flat covers with 3mm qtr turn bit locks.

    •Constructed from durable polycarbonate material.

    •Base and cover color in RAL 7035 - light grey.

    •Designed for a wide temperature range from -40 to 175 °F.

    •Compliant with UL/cUL types for enhanced safety.

    •Ingress protection ratings of IP66 and IP67.

    •Impact resistance rated at IK09.

    •Halogen free, UV resistant, and meets flammability ratings.

Specifications:

 Dimensions (inches) 14 x 12 x 3.31
 Dimensions (mm) 350 x 300 x 88
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
