8561838 - Protection Window - HMI Cover

8561838 - Protection Window - HMI Cover

SKU: AR IPW 1412 SC T   Download PDF

Qty:
Now $20,875.00   Web pricing policy
BEFORE   Now $20,875.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

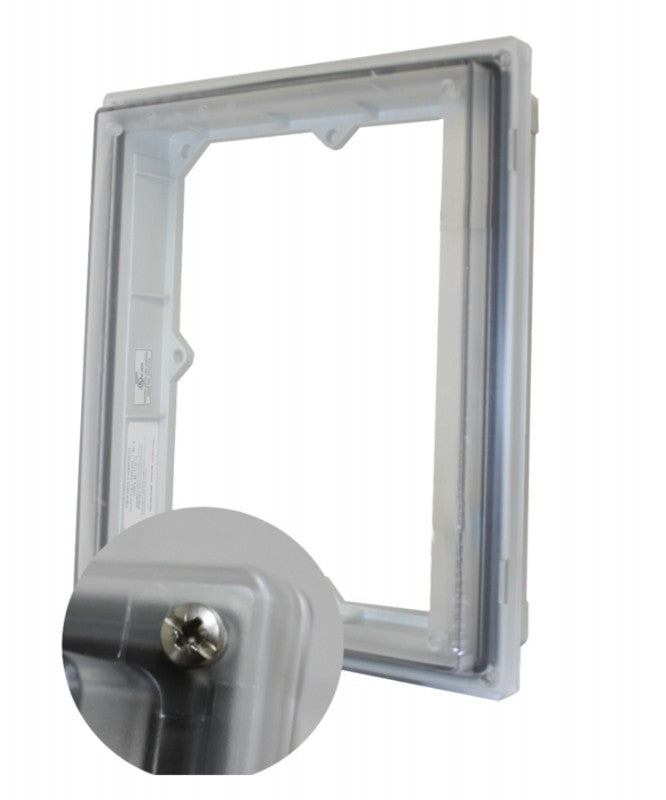

Transparent, clear hinged screw locking cover.

Features and Benefits:

    •Polycarbonate material.

    •Light grey color (RAL 7035).

    •UL/cUL Type 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection IP66; IP67.

    •Impact Resistance IK09.

    •Halogen free.

    •UV resistant.

    •Flammability Rating UL94-5VA (f1).

    •Glow Wire Test up to 960 °C.

Specifications:

 Height (inch) 14
 Width (inch) 12
 Depth (inch) 3.31
 Height (mm) 350
 Width (mm) 300
 Depth (mm) 88
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
