8561831 Protection Window - HMI Cover

8561831 Protection Window - HMI Cover

SKU: AR IPW 1210 K F Download PDF

Now $18,966.00
BEFORE   Now $18,966.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

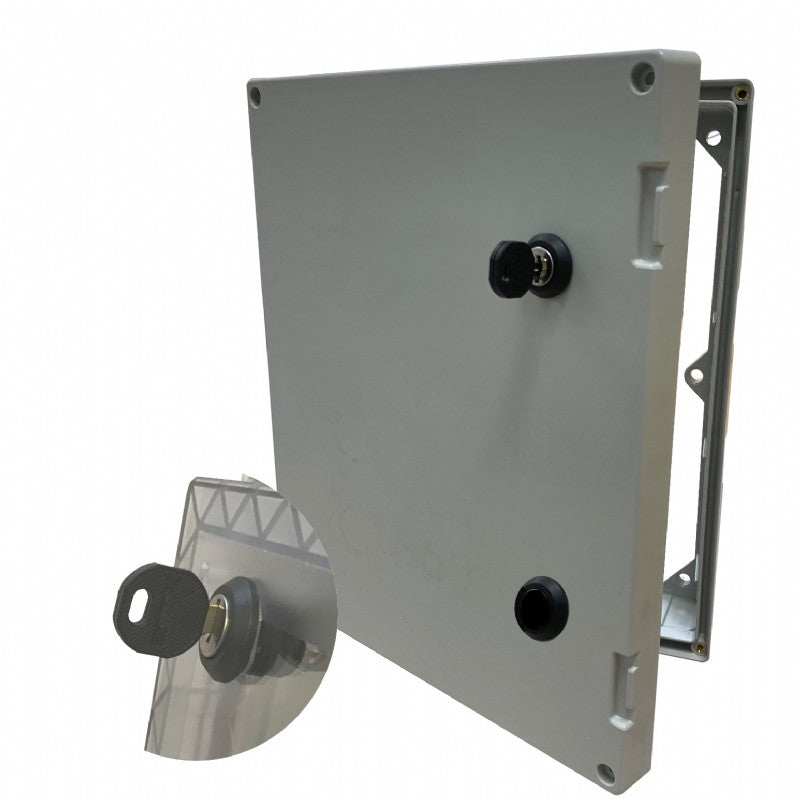

Opaque flat cover with key lock.

Features and Benefits:

    •Material: Polycarbonate.

    •Base color: RAL 7035 -light grey.

    •Cover color: Transparent.

    •Gasket material: Polyurethane.

    •Temperatures: -40 … 175 °F; -40 … 80 °C.

    •Ingress Protection: IP66; IP67.

    •Impact Resistance: IK09.

    •Halogen free: Yes.

    •UV resistance: UL 508.

    •Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1).

    •Glow Wire Test: 960 °C.

Specifications:

 Dimensions (inches) 12 x 10 x 3.31
 Dimensions (mm) 342 x 295 x 88
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
