8561829 Protection Window - HMI Cover

8561829 Protection Window - HMI Cover

SKU: AR IPW 1210 SC F Download PDF

Now $15,390.00
BEFORE   Now $15,390.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

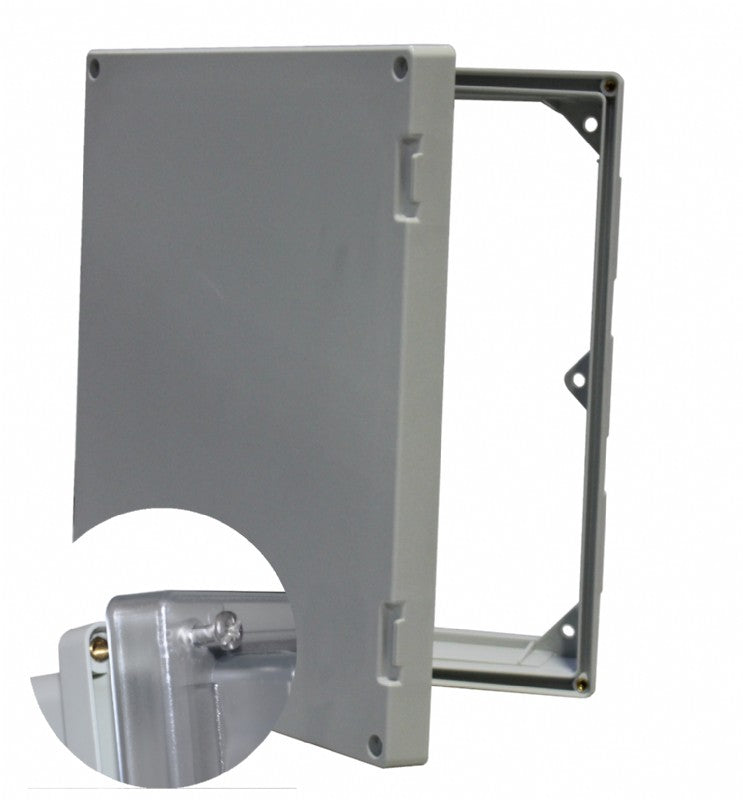

The Protection Window - HMI Cover is an opaque flat hinged screw locking cover designed for protection applications It features UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13 ratings, with an ingress protection rating of IP66 and IP67 This cover is crafted from polycarbonate material and is suitable for environments requiring high durability and exposure resistance.

Features and Benefits:

    •Opaque flat hinged screw locking cover.

    •Constructed from durable polycarbonate material.

    •Base color is RAL 7035 - light grey.

    •Cover color is transparent.

    •Gasket material made of polyurethane.

    •Temperature range from -40 to 175 °F (-40 to 80 °C).

    •UL/cUL Type ratings of 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection rating of IP66 and IP67.

    •Impact Resistance rating of IK09.

    •Halogen free.

    •UV resistance certified by UL 508.

    •Flammability Rating of UL94-5VA (f1) and Cover: UL94-V0 (f1).

Specifications:

 Dimensions (inch): Height 12
 Dimensions (inch): Width 10
 Dimensions (inch): Depth 3.31
 Dimensions (mm): Height 342
 Dimensions (mm): Width 295
 Dimensions (mm): Depth 88
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
