8561828 Protection Window - HMI Cover

8561828 Protection Window - HMI Cover

SKU: AR IPW 1210 B F Download PDF

Now $16,467.00
BEFORE   Now $16,467.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

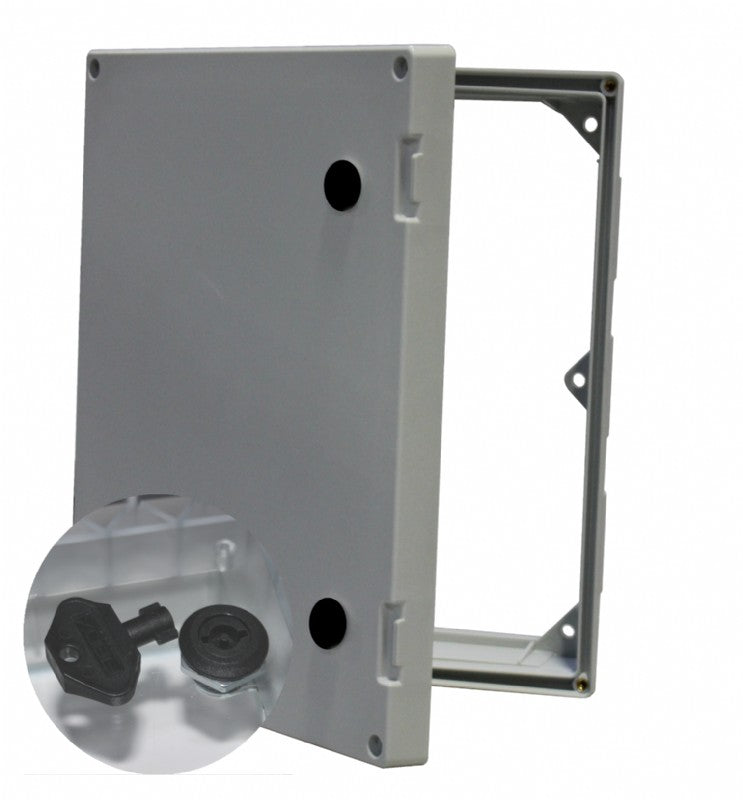

Opaque flat covers equipped with 3mm quarter turn bit locks, designed to provide robust protection for HMIs Constructed from polycarbonate with a base and cover color of RAL 7035 (light grey) The product ensures good performance in various environmental conditions.

Features and Benefits:

    •Constructed from durable polycarbonate.

    •Uncomplicated installation with quarter turn bit locks.

    •IP66 and IP67 ratings for high ingress protection.

    •Impact resistance rated IK09.

    •Halogen free, ensuring safety in fire situations.

    •Resistant to UV exposure.

    •Wide operating temperature range.

Specifications:

 Dimensions (inches) 12 x 10 x 3.31
 Dimensions (mm) 342 x 295 x 88
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F, continuous) -40 … 175
 Temperature (°C, continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
