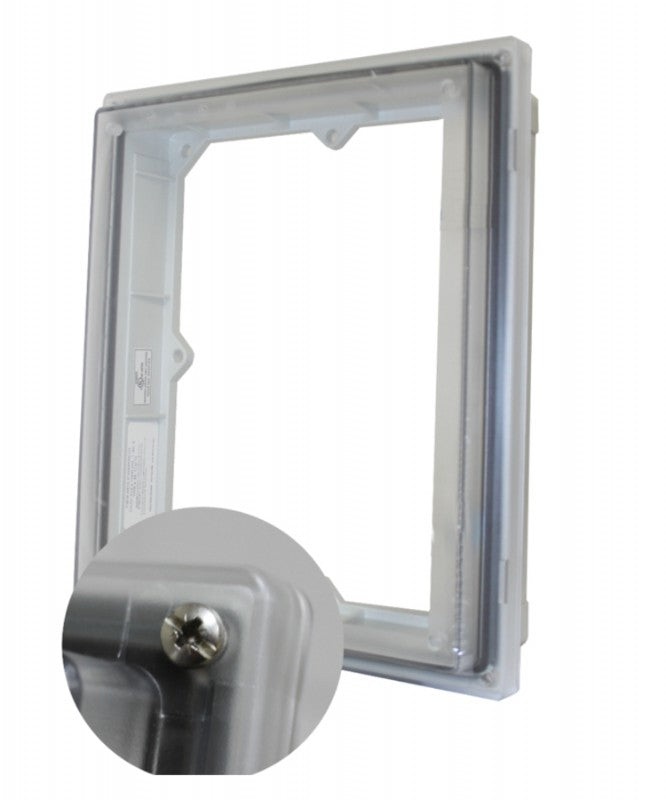

8561825 Protection Window - HMI Cover

Name: 8561825 Protection Window - HMI Cover
Brand: FIBOX
SKU: AR IPW 1210 SC T
Price: 18702.00 USD
Availability: InStock

SKU: SKU: AR IPW 1210 SC T Download PDF

QTY:

Now $18,702.00

~~BEFORE~~ Now $18,702.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Transparent, clear hinged screw locking cover Dimensions: Height (inch): 12, Width (inch): 10, Depth (inch): 331, Height (mm): 342, Width (mm): 295, Depth (mm): 88 Material: Polycarbonate Base color: RAL 7035 - light grey Cover color: RAL 7035 - light grey Gasket material: Polyurethane Temperature °F (continuous): -40 … 175, Temperature °C (continuous): -40 … 80.

Features and Benefits:

•UL/cUL Type: 4, 4X, 6, 6P, 12, 12K and 13.

•Ingress Protection (EN 60529): IP66; IP67.

•Impact Resistance (EN 62262): IK09.

•Halogen free (DIN/VDE 0472, Part 815).

•UV resistance: UL 508.

•Flammability Rating: UL94-5VA (f1).

•Glow Wire Test (IEC 60695): 960 °C.

Specifications:

Dimensions (inch):	12 x 10 x 3.31
Dimensions (mm):	342 x 295 x 88
Material:	Polycarbonate
Base color:	RAL 7035 - light grey
Cover color:	RAL 7035 - light grey
Gasket material:	Polyurethane
Temperature (continuous) °F:	-40 … 175
Temperature (continuous) °C:	-40 … 80
UL/cUL Type:	4, 4X, 6, 6P, 12, 12K and 13
Ingress Protection:	IP66; IP67
Impact Resistance:	IK09
Halogen free:	Yes
UV resistance:	UL 508
Flammability Rating:	UL94-5VA (f1)
Glow Wire Test:	960 °C
