8561816 Protection Window - HMI Cover

8561816 Protection Window - HMI Cover

SKU: AR IPW 108 K T Download PDF

Now $14,707.00
BEFORE   Now $14,707.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

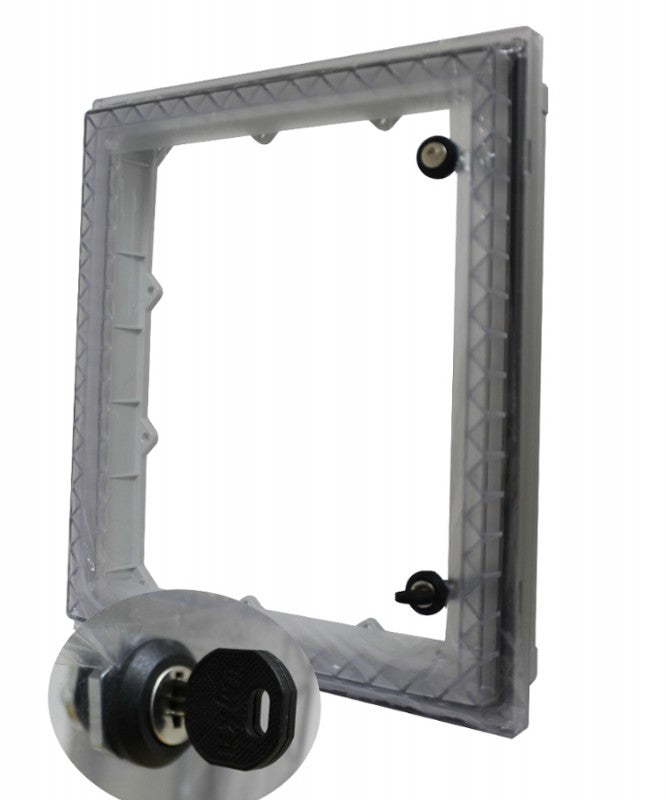

Transparent, clear cover with key locks The product is designed for protective purposes with a rated UL/cUL type including NEMA ratings It features dimensions suitable for various applications and is made from durable materials to withstand harsh environments.

Features and Benefits:

    •Transparent, clear cover allows for visibility.

    •Key locks for added security.

    •Made from polycarbonate for durability.

    •UL/cUL Type ratings ensure compliance with safety standards.

    •Ingress Protection ratings ensure resistance to water and dust.

    •Impact Resistance rating provides assurance against accidental damage.

Specifications:

 Dimensions: 10 x 8 x 3.31 inches
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695): 960 °C
