8561807 Protection Window - HMI Cover

8561807 Protection Window - HMI Cover

SKU: AR IPW 1614 K T   Download PDF

Qty:
Now $34,302.00   Web pricing policy
BEFORE   Now $34,302.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

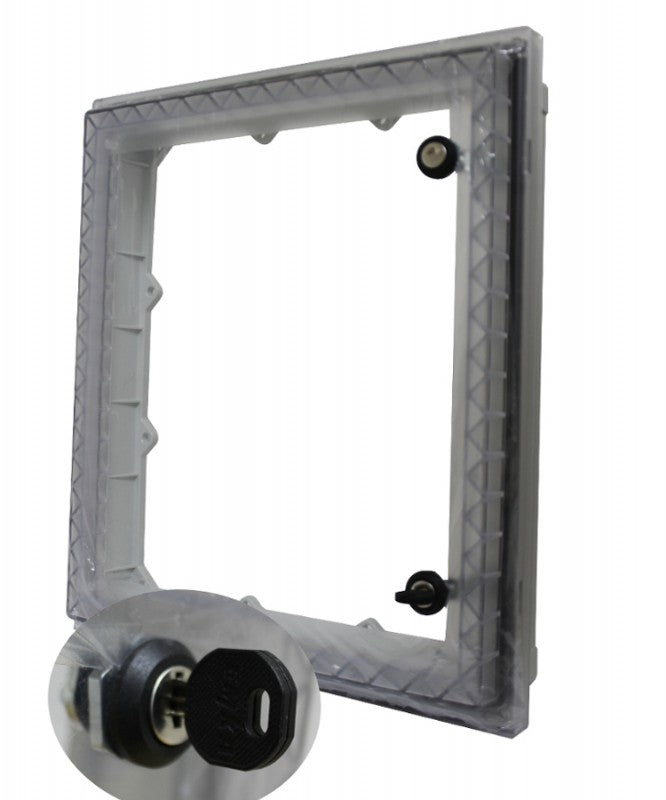

Protection Window - HMI Cover is a transparent, clear cover equipped with key locks, ensuring protection and accessibility It features dimensions of 16 inches in height, 14 inches in width, and 331 inches in depth The cover is constructed from durable polycarbonate material with a light grey base color (RAL 7035) and a transparent cover, allowing visibility while offering protection.

Features and Benefits:

    •Transparent, clear cover with key locks.

    •Constructed from durable polycarbonate material.

    •Ingress Protection ratings of IP66 and IP67.

    •Impact resistance rated IK09.

    •UV resistance per UL 508.

    •Halogen free according to DIN/VDE 0472, Part 815.

    •Flammability rating of UL94-5VA for the casing and UL94-V0 for the cover.

Specifications:

 Height (inch) 16
 Width (inch) 14
 Depth (inch) 3.31
 Height (mm) 406
 Width (mm) 355
 Depth (mm) 88
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature (continuous) °F -40 … 175
 Temperature (continuous) °C -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Impact Resistance (EN 62262) IK09
 Glow Wire Test (IEC 60695) 960 °C
 Flammability Rating UL94-5VA (f1) / Cover: UL94-V0 (f1)
