8561805 - Protection Window - HMI Cover

8561805 - Protection Window - HMI Cover

SKU: AR IPW 1614 SC T Download PDF

Now $30,726.00
BEFORE   Now $30,726.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

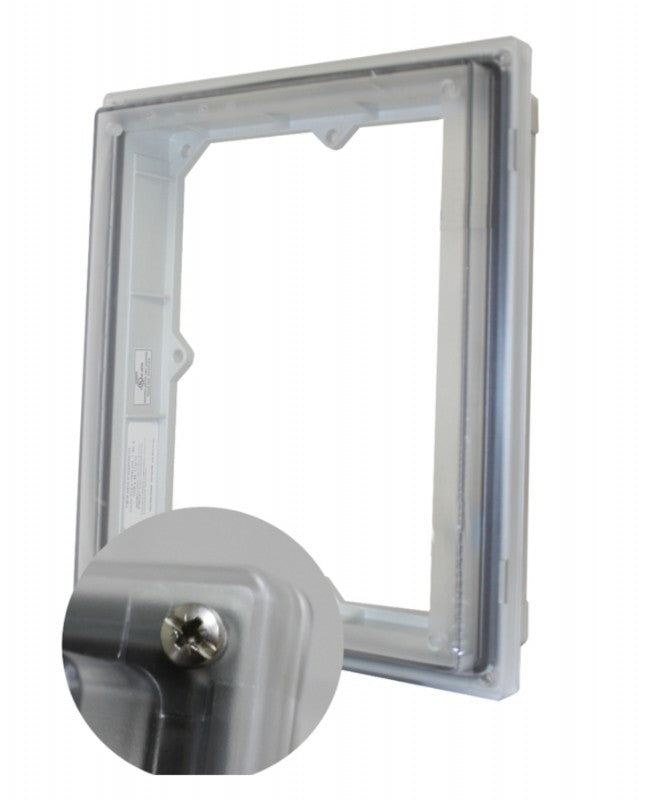

Protection Window - HMI Cover features a transparent, clear hinged screw locking design It is specifically built to provide coverage while maintaining visibility, ensuring functionality in various environments.

Features and Benefits:

    •Transparent, clear hinged screw locking cover.

    •Light grey base color (RAL 7035).

    •Polyurethane cover color.

    •Halogen free.

    •UV resistant.

    •High impact resistance (IK09).

Specifications:

 Height (inch) 16
 Width (inch) 14
 Depth (inch) 3.31
 Height (mm) 406
 Width (mm) 355
 Depth (mm) 88
 Material RAL 7035 -light grey
 Temperature °F (continuous) -40 … 140
 UL/cUL Type UL 508
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 UV resistance UL94-5VA (f1)
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
