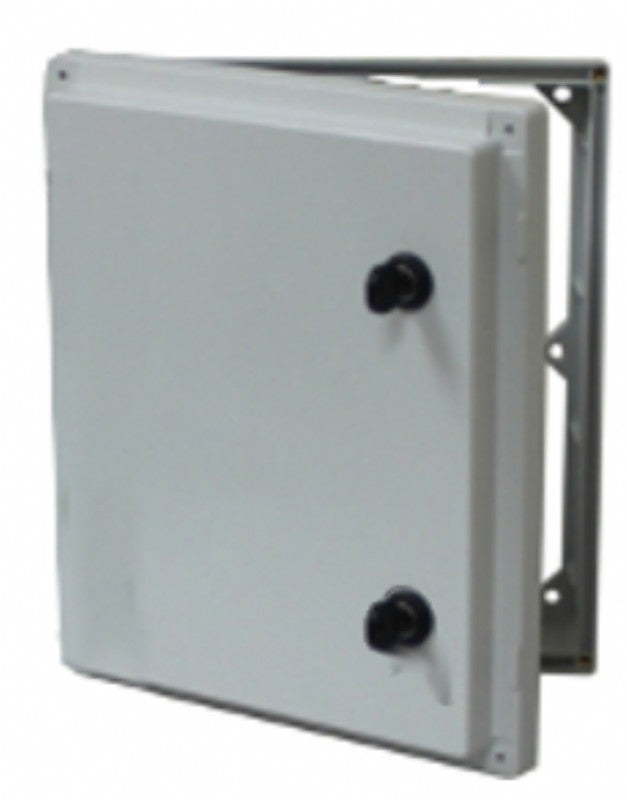

8561803 Protection Window - HMI Cover

8561803 Protection Window - HMI Cover

SKU: AR IPW 1614 K Download PDF

Now $29,890.00
BEFORE   Now $29,890.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Opaque cover with key lock that offers protection with a height of 16 inches, a width of 14 inches, and a depth of 331 inches The protection window is made from polycarbonate material, featuring a base color of RAL 7035 light grey and a transparent cover It is designed to withstand extreme temperatures ranging from -40 to 175 °F (-40 to 80 °C) and is equipped with a polyurethane gasket for additional sealing.

The product complies with UL/cUL ratings for types 4, 4X, 6, 6P, 12, 12K and 13, as well as ingress protection ratings of IP66 and IP67 Furthermore, it has an impact resistance rating of IK09, is halogen-free, UV resistant according to UL 508 standards, and has a flammability rating of UL94-5VA (f1) for the body and UL94-V0 (f1) for the cover, with a glow wire test rating of 960 °C.

Specifications:

 Dimensions (inches) Height: 16
 Dimensions (inches) Width: 14
 Dimensions (inches) Depth: 3.31
 Dimensions (mm) Height: 406
 Dimensions (mm) Width: 355
 Dimensions (mm) Depth: 88
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature (°F continuous): -40 … 175
 Temperature (°C continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67;
 Impact Resistance (EN 62262): IK09;
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695): 960 °C
