8561802 Protection Window - HMI Cover

8561802 Protection Window - HMI Cover

SKU: AR IPW 1614 W Download PDF

Now $27,589.00
BEFORE   Now $27,589.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

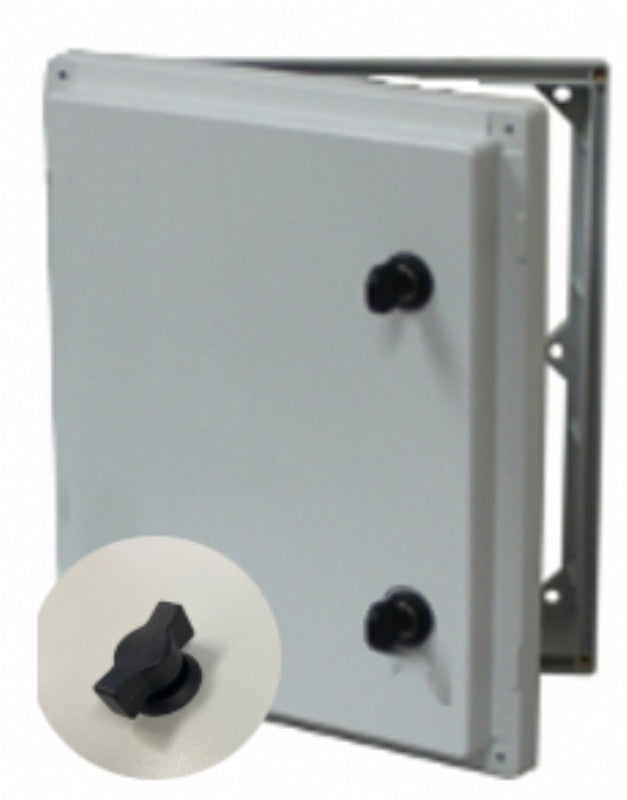

Opaque cover with non locking wing knobs The dimensions of the product are 16 inches in height, 14 inches in width, and 331 inches in depth The materials used include RAL 7035 light grey for the base color, and polyurethane for the cover color It is designed for a temperature range of -40 to 140 °F.

Features and Benefits:

    •UL Type: UL 508.

    •Ingress Protection: IP66; IP67.

    •Impact Resistance: IK09.

    •Halogen free per DIN/VDE 0472, Part 815.

    •UV resistance rating: UL94-5VA (f1).

    •Flammability Rating: UL94-5VA (f1).

    •Glow Wire Test: 960 °C.

Specifications:

 Height (inch) 16
 Width (inch) 14
 Depth (inch) 3.31
 Height (mm) 406
 Width (mm) 355
 Depth (mm) 88
 Material RAL 7035 -light grey
 Base color RAL 7035 -light grey
 Cover color Polyurethane
 Gasket material -40 … 250
 Temperature °F (continuous) -40 … 140
 UL/cUL Type UL 508
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL94-5VA (f1)
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
