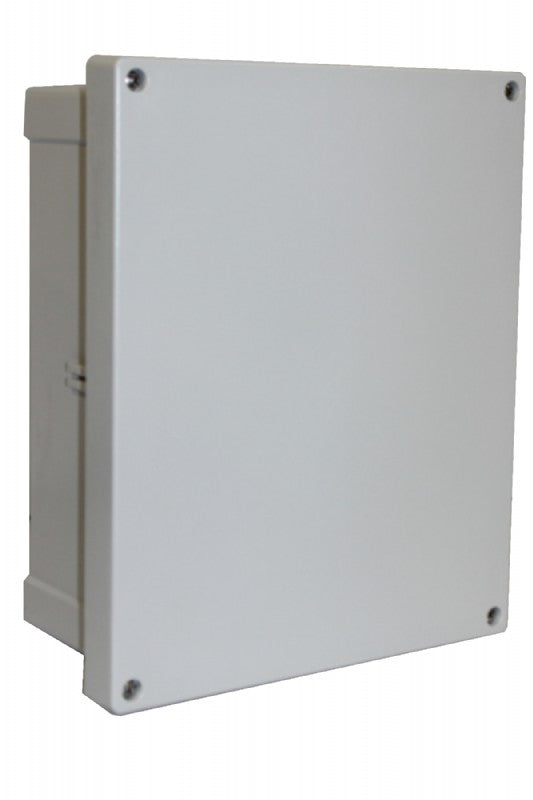

8561707 14 x 12 x 6 Inch PC Enclosure, Flat Opaque Screw Cover

8561707 14 x 12 x 6 Inch PC Enclosure, Flat Opaque Screw Cover

SKU: AR14126FSC Download PDF

Now $18,079.00
BEFORE   Now $18,079.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This 14 x 12 x 6 Inch PC Enclosure comes with a flat opaque screw cover designed to provide robust protection Suitable for various applications, it features a base with 10-32 brass inserts and is equipped with a PUR gasket It ensures compliance with UL Type NEMA ratings 4, 4X, 12, 12K, and 13, along with IP66 and IP67 ingress protection ratings The material used is polycarbonate, ensuring durability and UV resistance.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Flat screw cover design for easy access.

    •Base with 10-32 brass inserts for secure mounting.

    •Includes formed in place PUR gasket and stainless cover screws.

    •Complies with various UL ratings and ingress protection standards.

Specifications:

 Dimensions (Height x Width x Depth) 14 x 12 x 6 inches
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (continuous, °F) -40 … 175
 Temperature (continuous, °C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
