Home / 8561700 14 x 12 x 6 Inch PC Enclosure, Hinged Latched Opaque Flat Cover
1 1

8561700 14 x 12 x 6 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

8561700 14 x 12 x 6 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

SKU: AR14126CHFSS Download PDF

Now $23,142.00
BEFORE   Now $23,142.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

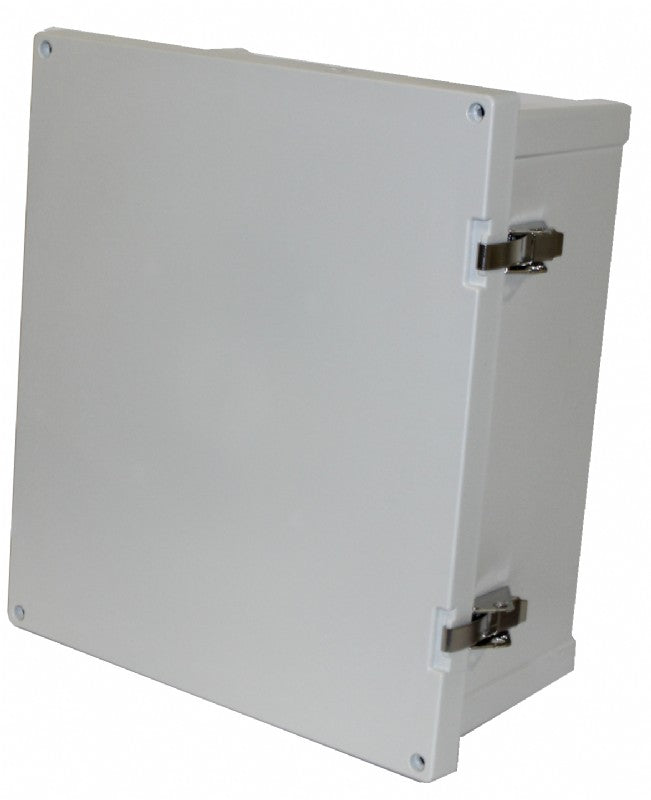

14 x 12 x 6 Inch PC Enclosure, Hinged Latched Opaque Flat Cover This enclosure features a hinged cover and a base with 10-32 brass inserts It comes with a latched flat cover that has a formed in place PUR gasket and a stainless hinge pin Quick release latches are included, and options for latches are available The product also includes an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •Hinged cover for easy access.

    •Latched flat cover with formed in place PUR gasket.

    •Stainless hinge pin for durability.

    •IP66 and IP67 rated for ingress protection.

    •Impact resistance rating of IK09.

    •Fully insulated for electrical safety.

    •Halogen free and UV resistant materials.

Specifications:

 Dimensions (inches) 14 x 12 x 6
 Dimensions (mm) 355.6 x 304.8 x 152.4
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
