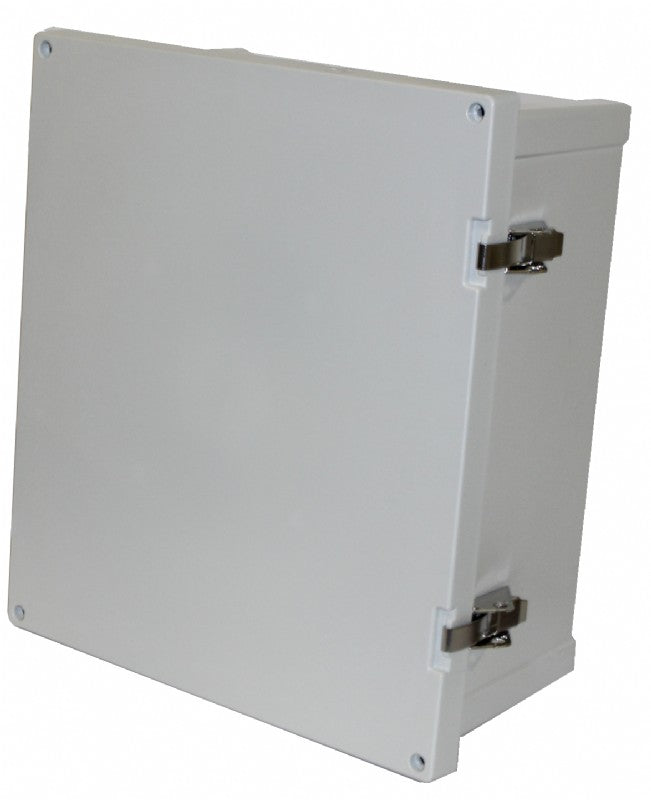

8561682 12 x 10 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

8561682 12 x 10 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

SKU: AR12105CHFSSL Download PDF

Now $18,552.00
BEFORE   Now $18,552.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 12 x 10 x 5 Inch PC Enclosure featuring a hinged latched opaque flat cover It is constructed from polycarbonate material and conforms to UL Type ratings including NEMA 4, 4X, 6, 6P, 12, 12K, and 13 The enclosure includes a hinged cover, base with 10-32 brass inserts, and quick release latches It is designed for easy access with an accessory kit for panel mounting Additional features include a formed in place PUR gasket and stainless hinge pins.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •IP66 and IP67 ingress protection ratings.

    •Includes a hinged cover with quick release latches.

    •Accessory mounting foot kit included.

    •UV resistant with a flammability rating of UL94-5VA (f1).

    •Wide temperature range from -40 °C to 80 °C.

Specifications:

 Dimensions (inch) 12 x 10 x 5
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 to 175
 Temperature (continuous) °C -40 to 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
