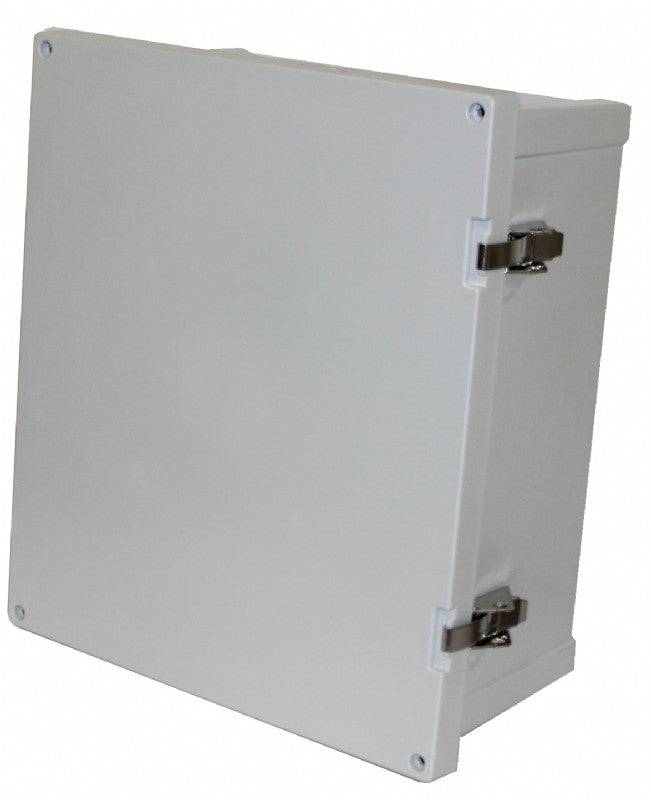

8561682 12 x 10 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

8561682 12 x 10 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

SKU: AR12105CHFSS Download PDF

Now $18,248.00
BEFORE   Now $18,248.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

12 x 10 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover This enclosure features a hinged cover, a base with 10-32 brass inserts, and a latched flat cover with a formed in place PUR gasket and stainless hinge pin It also includes quick release latches and comes with an enclosure mounting foot kit, as well as accessory 10-32 screws for panel mounting.

Features and Benefits:

    •Hinged latched opaque flat cover.

    •Constructed from durable polycarbonate material.

    •Ingress Protection ratings of IP66 and IP67.

    •Impact Resistance rating of IK09.

    •Fully insulated for electrical safety.

    •Halogen free materials used.

    •UV resistance compliant.

    •Flammability Rating of UL94-5VA (f1).

    •Glow Wire Test rated at 960 °C.

Specifications:

 Dimensions (Height x Width x Depth in inches) 12 x 10 x 5
 Dimensions (Height x Width x Depth in mm) 304.8 x 254 x 127
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature Range (°F) -40 … 175
 Temperature Range (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
