8561380 24 x 20 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Quick release latch

8561380 24 x 20 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Quick release latch

SKU: AR24208CHSS Download PDF

Now $72,208.00
BEFORE   Now $72,208.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

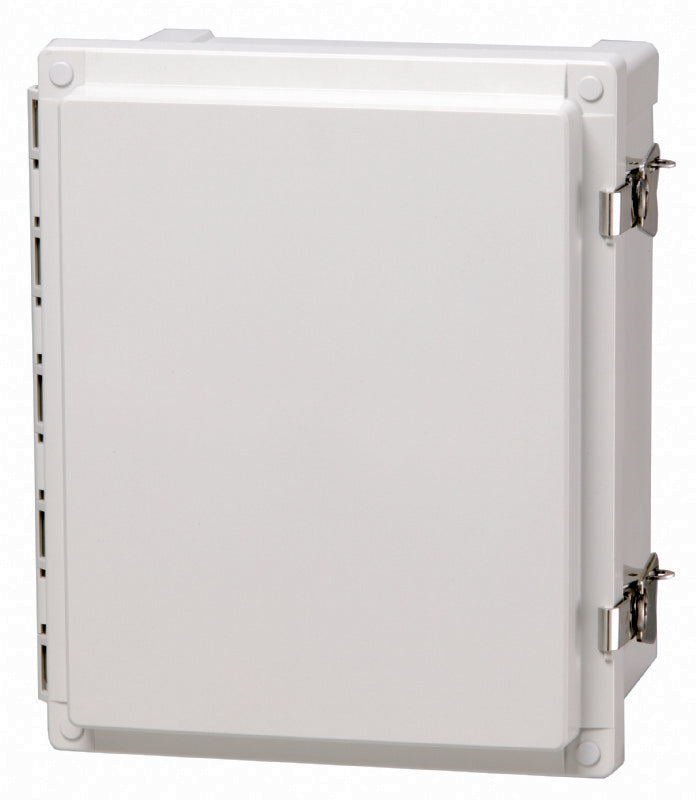

24 x 20 x 8 Inch PC Enclosure, Hinged opaque screw cover w/SS Quick release latch This enclosure features a hinged cover, a base with 10-32 brass inserts, and a latched cover with a formed in place PUR gasket It includes a stainless hinge pin and quick release latches, as well as an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •UL Type NEMA 4, 4X, 12, 12K and 13.

    •Ingress Protection rating of IP66 and IP67.

    •Impact Resistance rating IK09.

    •Fully insulated electrical insulation.

    •Halogen free material.

    •UV resistance according to UL 508.

    •Flammability Rating UL94-5VA (f1).

    •Glow Wire Test compliance with IEC 60695 at 960 °C.

Specifications:

 Height (inch) 24
 Width (inch) 20
 Depth (inch) 8
 Height (mm) 609.6
 Width (mm) 508
 Depth (mm) 203.2
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
