8561111 10 x 10 x 6 Inch PC Enclosure, Hinged opaque screw cover w/Plastic quick release latch

8561111 10 x 10 x 6 Inch PC Enclosure, Hinged opaque screw cover w/Plastic quick release latch

SKU: AR10106CHL Download PDF

Now $16,091.00
BEFORE   Now $16,091.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

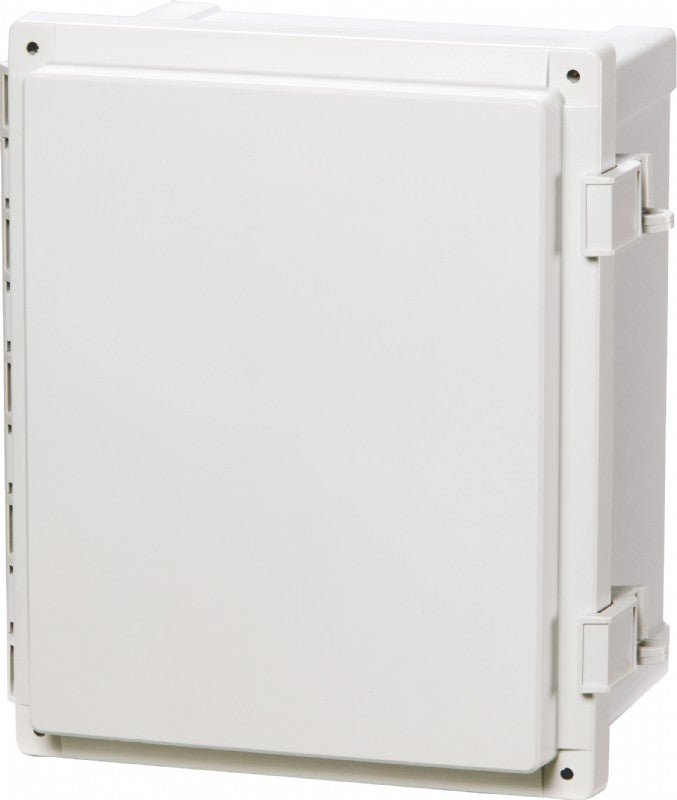

This is a 10 x 10 x 6 Inch PC Enclosure featuring a hinged opaque screw cover with a plastic quick release latch It includes a hinged cover, a base with 10-32 brass inserts, a latched cover with a formed in place PUR gasket, and a stainless hinge pin The enclosure comes with quick release latches and an enclosure mounting foot kit, as well as accessory 10-32 screws for panel mounting.

Features and Benefits:

    •Hinged cover for easy access.

    •Constructed with durable polycarbonate material.

    •Complies with multiple UL/cUL types (4, 4X, 6, 6P, 12, 12K and 13).

    •Robust ingress protection rated IP66 and IP67.

    •Impact resistance rated IK09.

    •Fully insulated for electrical safety.

    •Halogen free construction.

    •UV resistant according to UL 508.

    •High flammability rating (UL94-5VA).

    •Glow wire test rating at 960 °C.

Specifications:

 Dimensions (Height x Width x Depth) (inche) 10 x 10 x 6
 Dimensions (Height x Width x Depth) (mm) 254 x 254 x 152.4
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 … 175
 Temperature (continuous) °C -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
