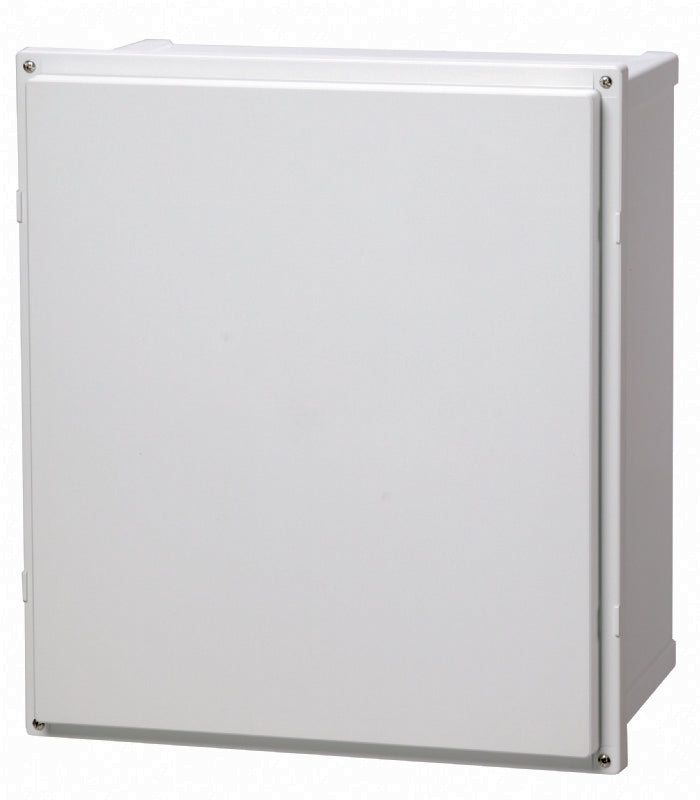

8561109 - 10 x 10 x 6 Inch PC Enclosure Raised Opaque Screw Cover

8561109 - 10 x 10 x 6 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR10106SC Download PDF

Now $13,471.00
BEFORE   Now $13,471.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 10 x 10 x 6 Inch PC Enclosure Raised Opaque Screw Cover is designed for durable outdoor and indoor usage This enclosure is made from polycarbonate and features a screw cover for secure access It includes brass inserts for mounting and is compliant with numerous UL standards This enclosure ensures protection against dust and water with ingress protection ratings of IP66 and IP67 and is built to withstand harsh environments.

Features and Benefits:

    •Constructed from high-quality polycarbonate..

    •Ingress protection ratings of IP66 and IP67 for maximum safety..

    •Impact resistance rated at IK09..

    •Temperature range of -40 … 175 °F (-40 … 80 °C)..

    •Fully insulated for electrical safety..

    •Halogen-free and UV resistant..

    •Includes screw cover for easy access..

Specifications:

 Height (inch) 10
 Width (inch) 10
 Depth (inch) 6
 Height (mm) 254
 Width (mm) 254
 Depth (mm) 102
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
