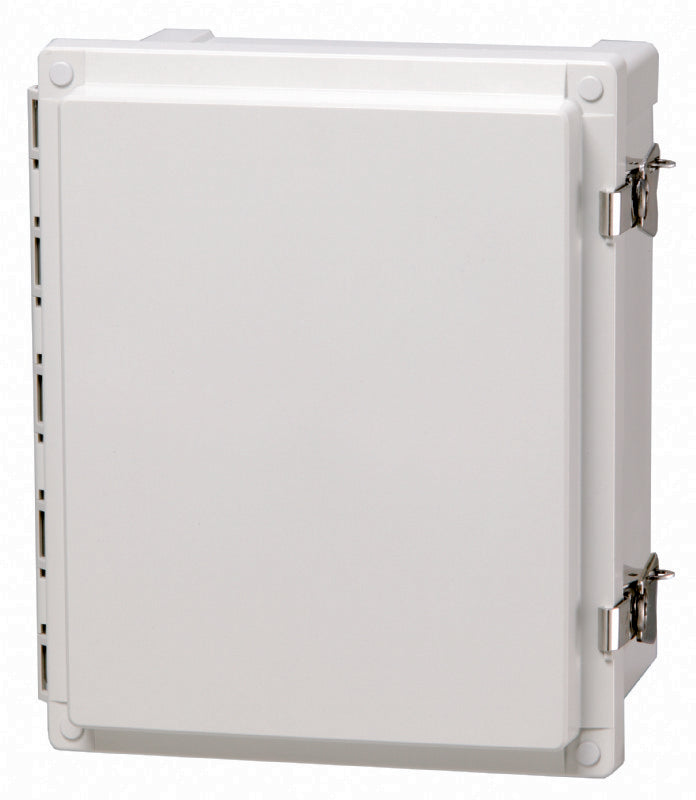

8561102 10 x 8 x 4 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

8561102 10 x 8 x 4 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

SKU: AR1084CHTSS Download PDF

Now $16,486.00
BEFORE   Now $16,486.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 4 Inch PC Enclosure, Hinged opaque screw cover w/SS Lockable twist latch Suitable for different applications including UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13; IP66; IP67; IK09 It features a hinged cover, base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin, quick release latches, enclosure mounting foot kit, and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •Hinged cover for easy access.

    •Durable base with 10-32 brass inserts.

    •Lockable twist latch for added security.

    •Constructed from polycarbonate for high strength.

    •Designed for harsh environments with IP66 and IP67 ratings.

Specifications:

 Dimensions (Height x Width x Depth in inch): 10 x 8 x 4
 Dimensions (Height x Width x Depth in mm): 254 x 203.2 x 101.6
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: RAL 7035 - light grey
 Gasket material: Polyurethane
 Temperature (°F, continuous): -40 … 175
 Temperature (°C, continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical insulation: Fully insulated
 Halogen free: Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
