Home / 8561087 - 8 x 8 x 4 Inch PC Enclosure, Hinged opaque screw cover w/Plastic quick release latch
1 1

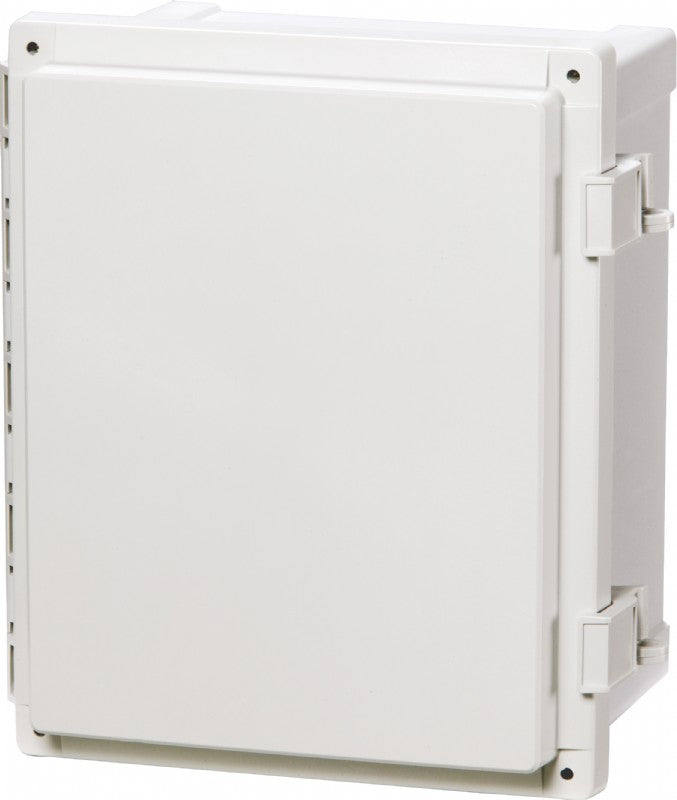

8561087 - 8 x 8 x 4 Inch PC Enclosure, Hinged opaque screw cover w/Plastic quick release latch

8561087 - 8 x 8 x 4 Inch PC Enclosure, Hinged opaque screw cover w/Plastic quick release latch

SKU: AR884CHL Download PDF

Now $14,603.00
BEFORE   Now $14,603.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

8 x 8 x 4 Inch PC Enclosure, Hinged opaque screw cover w/Plastic quick release latch The enclosure includes a hinged cover, base with 10-32 brass inserts, latched cover with formed in place PUR gasket, and stainless hinge pin It also features quick release latches and an enclosure mounting foot kit with accessory 10-32 screws for panel mounting Suitable for various environments with protection ratings UL Type NEMA 4, 4X, 6, 6P, 12, 12K, and 13, and an Ingress Protection degree of IP66 and IP67, making it durable against hazardous conditions.

Features and Benefits:

    •UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13 compliant.

    •Ingress Protection (IP66; IP67) for dust and water resistance.

    •Impact Resistance rated IK09.

    •Quick release latches for easy access.

    •Fully insulated electrical insulation.

    •Halogen free material.

    •UV resistance and Flammability Rating UL94-5VA (f1).

Specifications:

 Dimensions Height (inch) 8
 Dimensions Width (inch) 8
 Dimensions Depth (inch) 4
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 … 175
 Temperature (continuous) °C -40 … 80
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Glow Wire Test (IEC 60695) 960 °C
