8561086 - 8 x 8 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover

8561086 - 8 x 8 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR884CHSC Download PDF

Now $13,097.00
BEFORE   Now $13,097.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

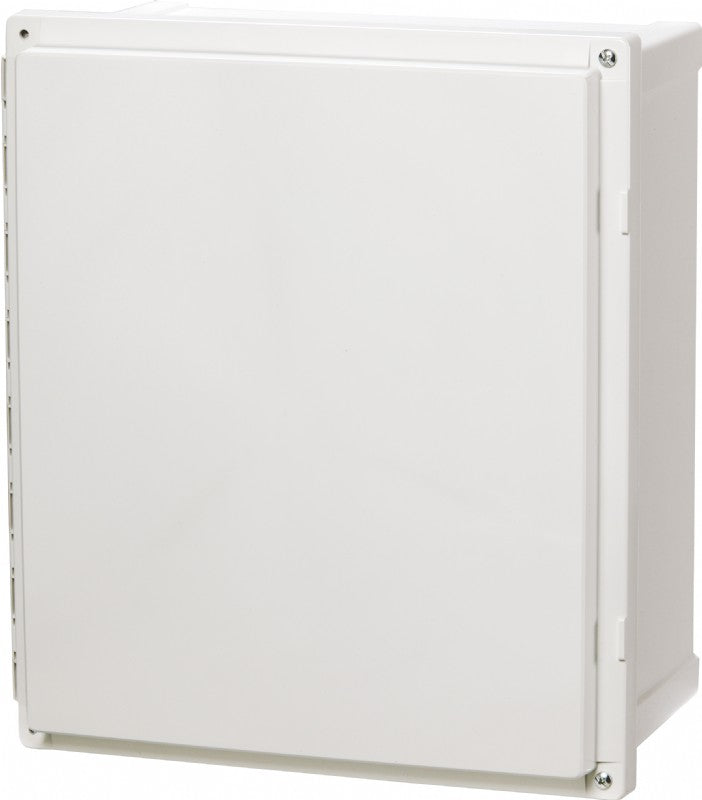

8 x 8 x 4 Inch PC Enclosure with a Hinged Opaque Raised Screw cover designed for durability and protection The enclosure is compliant with UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 ratings, ensuring it meets rigorous standards for electrical insulation and resistance to environmental factors It includes a hinged screw cover and features a base with 10-32 brass inserts, a formed in place PUR gasket, and a stainless hinge pin for reliable operation.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Hinged screw cover provides easy access.

    •IP66 and IP67 rated for superior ingress protection.

    •Impact resistance rated IK09 ensures durability.

    •Halogen-free and compliant with UV resistance standards.

    •Able to withstand temperatures from -40 °F to 175 °F (-40 °C to 80 °C).

Specifications:

 Dimensions (inches) 8 x 8 x 4
 Dimensions (mm) 203.2 x 203.2 x 101.6
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
