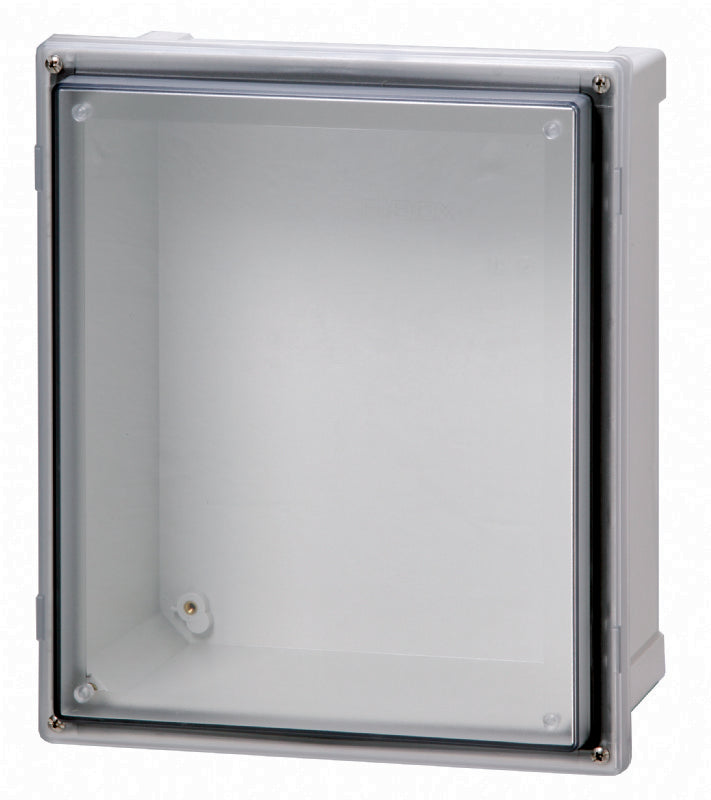

Home / 8561080 18 x 16 x 10 Inch PC Enclosure, Hinged Transparent Screw Cover
1 1

8561080 18 x 16 x 10 Inch PC Enclosure, Hinged Transparent Screw Cover

8561080 18 x 16 x 10 Inch PC Enclosure, Hinged Transparent Screw Cover

SKU: AR181610CHSCT Download PDF

Now $35,204.00
BEFORE   Now $35,204.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

18 x 16 x 10 Inch PC Enclosure with a hinged transparent screw cover designed for durability and protection This enclosure features a base with 10-32 brass inserts and is compliant with UL Type NEMA standards It includes a formed in place PUR gasket, stainless hinge pin, and two cover screws, ensuring a secure closure Ideal for a variety of applications requiring reliable enclosure solutions.

Features and Benefits:

    •Hinged transparent screw cover for easy access.

    •Constructed from durable polycarbonate material.

    •Complies with UL Type NEMA 4, 4X, 12, 12K and 13.

    •Ingress protection rated at IP66 and IP67.

    •Impact resistance rated at IK09.

    •Halogen-free for safety.

Specifications:

 Dimensions (inch) 18 x 16 x 10
 Dimensions (mm) 457.2 x 406.4 x 254
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature (°C continuous) -40 to 80
 Temperature (°F continuous) -40 to 175
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
