8561072 18 x 16 x 10 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

8561072 18 x 16 x 10 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

SKU: AR181610CHTSS Download PDF

Now $33,928.00
BEFORE   Now $33,928.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

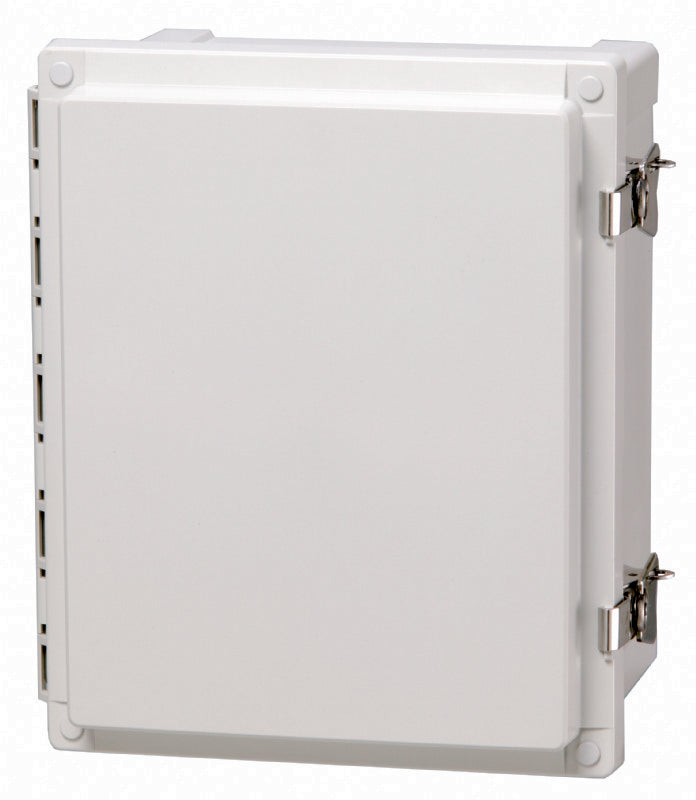

18 x 16 x 10 Inch PC Enclosure, Hinged opaque screw cover w/SS Lockable twist latch The enclosure is designed with a hinged cover and a base featuring 10-32 brass inserts It has a latched cover equipped with a formed in place polyurethane gasket and a stainless hinge pin The quick release latches enhance its usability The enclosure comes with a mounting foot kit and accessory 10-32 screws for panel mounting, ensuring easy installation and secure fastening.

Features and Benefits:

    •Hinged cover for easy access.

    •Base with 10-32 brass inserts for secure attachment.

    •Latched cover with formed in place PUR gasket for effective sealing.

    •Stainless hinge pin enhances durability.

    •Quick release latches for convenient operation.

    •Includes mounting foot kit for straightforward installation.

    •Accessory screws provided for panel mounting.

Specifications:

 Height (inch) 18
 Width (inch) 16
 Depth (inch) 10
 Height (mm) 457.2
 Width (mm) 406.4
 Depth (mm) 254
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X,12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
