8561067 18 x 16 x 10 Inch PC Enclosure Raised Opaque Screw Cover

8561067 18 x 16 x 10 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR181610SC Download PDF

Now $28,201.00
BEFORE   Now $28,201.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

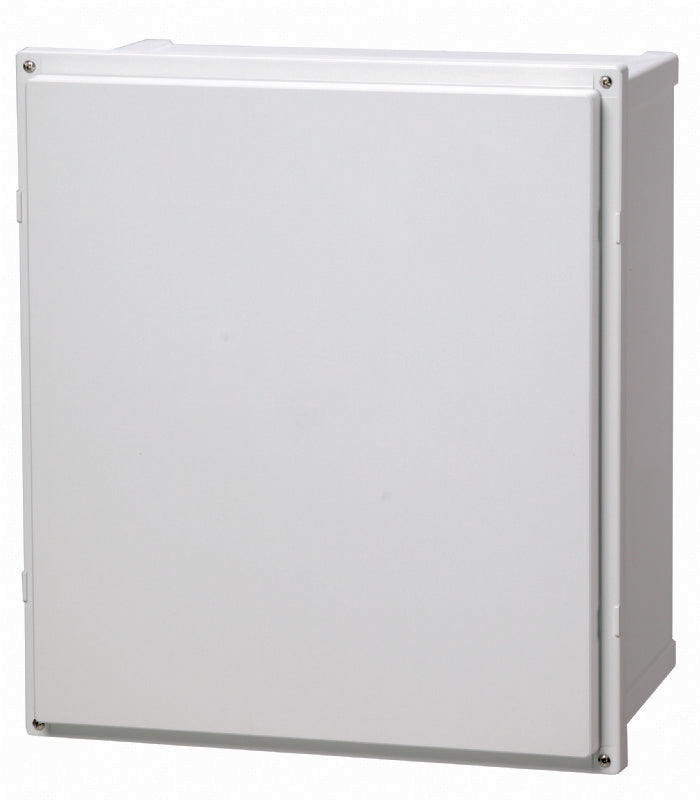

The product is a PC enclosure with dimensions of 18 x 16 x 10 inches, featuring a raised opaque screw cover It is made of polycarbonate material, available in light grey (RAL 7035) for both the base and the cover The enclosure includes a formed in place PUR gasket and is constructed with stainless steel cover screws It is designed for use in environments requiring protection against various hazards, with a reliable ingress protection rating.

Features and Benefits:

    •Constructed with polycarbonate material providing high durability.

    •Raised opaque screw cover for secure closure.

    •Ingress Protection ratings of IP66 and IP67 for water and dust resistance.

    •Impact resistance rating of IK09.

    •Fully insulated electrical insulation for safety.

    •Halogen-free design complying with DIN/VDE standards.

    •Temperature range from -40 °C to 80 °C for versatile applications.

    •UL94-5VA flammability rating ensuring fire safety.

Specifications:

 Dimensions (Inches) 18 x 16 x 10
 Dimensions (mm) 457.2 x 406.4 x 254
 Material Polycarbonate
 Base Color RAL 7035 - light grey
 Cover Color RAL 7035 - light grey
 Gasket Material Polyurethane
 UL/cUL Type UL/cUL 4, 4X,12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
 Continuous Temperature Range (°C) -40 to 80
