Home / 8561029 12 x 10 x 6 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch
1 1

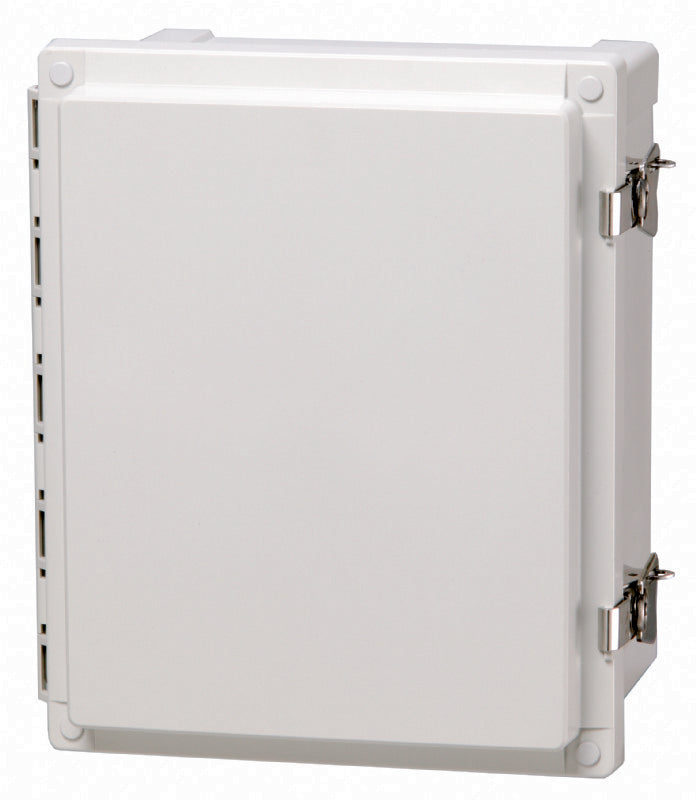

8561029 12 x 10 x 6 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

8561029 12 x 10 x 6 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

SKU: AR12106CHSSL Download PDF

Now $18,552.00
BEFORE   Now $18,552.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

12 x 10 x 6 Inch PC Enclosure, Hinged opaque screw cover with a stainless steel lockable latch This enclosure is designed for protecting electronic equipment and offering reliable performance in various environments The product features a hinged cover, a base with 10-32 brass inserts, quick-release latches, and an included enclosure mounting foot kit It is suitable for multiple applications requiring solid protection.

Features and Benefits:

    •Hinged cover for easy access.

    •Base with 10-32 brass inserts.

    •Includes quick-release latches.

    •Constructed with polycarbonate for durability.

    •Designed to meet UL/cUL Type ratings 4, 4X, 6, 6P, 12, 12K and 13.

Specifications:

 Dimensions (inches) 12 x 10 x 6
 Height (mm) 304.8
 Width (mm) 254
 Depth (mm) 152.4
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F, continuous) -40 … 175
 Temperature (°C, continuous) -40 … 80
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
