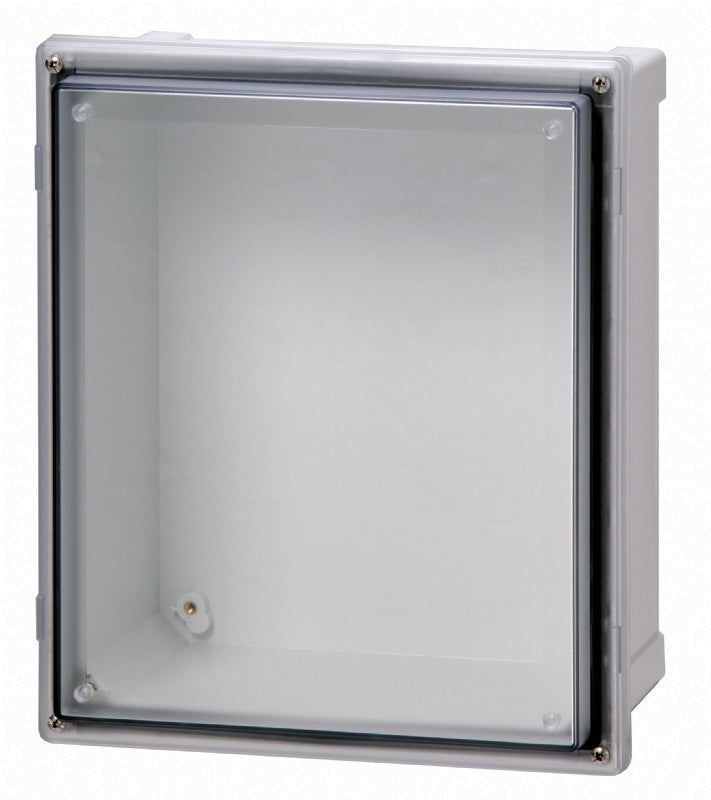

8561020 14 x 12 x 7 Inch PC Enclosure, Hinged Transparent Screw Cover

8561020 14 x 12 x 7 Inch PC Enclosure, Hinged Transparent Screw Cover

SKU: AR14127CHSCT Download PDF

Now $23,039.00
BEFORE   Now $23,039.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

14 x 12 x 7 Inch PC Enclosure with Hinged Transparent Screw Cover features a robust design suitable for various applications The enclosure is constructed from polycarbonate material, providing excellent protection with UL Type ratings of 4, 4X, 12, 12K, and 13 It is designed with an IP66 and IP67 ingress protection rating, ensuring durability against dust and water ingress The product includes a transparent hinged screw cover, a formed-in-place PUR gasket, and stainless hinge pin with cover screws for easy access and secure sealing.

Features and Benefits:

    •Constructed from polycarbonate for durability.

    •Hinged transparent screw cover for easy access.

    •Includes a PUR gasket for optimal sealing.

    •Rated IP66 and IP67 for superior ingress protection.

    •UL Type rated for various hazardous locations.

    •Impact resistant design with IK09 rating.

    •UV resistant to prevent degradation from sunlight.

Specifications:

 Dimensions (Height x Width x Depth): 14 x 12 x 7 inches
 Material: Polycarbonate
 Base Color: RAL 7035 - light grey
 Cover Color: Transparent
 Temperature Range (°F): -40 to 175
 Ingress Protection Rating: IP66; IP67
 Impact Resistance Rating: IK09
 UL/cUL Type Rating: 4, 4X, 12, 12K, and 13
 Flammability Rating: UL94-5VA (f1) / Cover: UL94-V0 (f1)
 Glow Wire Test: 960 °C
 Halogen Free: Yes
 UV Resistance: UL 508
