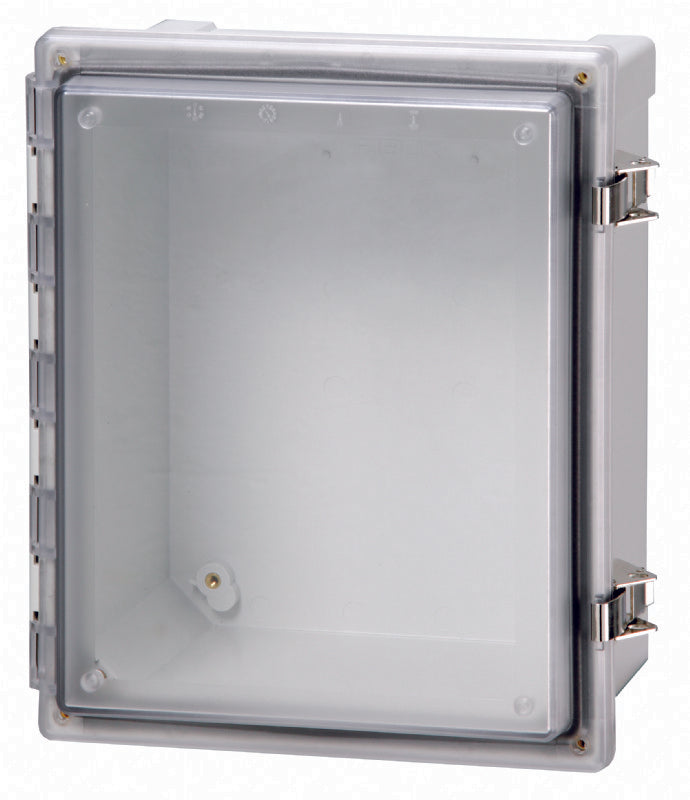

8561017 - 8 x 6 x 5 Inch PC Enclosure, Hinged Transparent Screw Cover

8561017 - 8 x 6 x 5 Inch PC Enclosure, Hinged Transparent Screw Cover

SKU: SKU: AR865CHSCT   Download PDF

Qty:
Regular price Now $14,466.00   Web pricing policy
Regular price BEFORE   Sale price Now $14,466.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

8 x 6 x 5 Inch PC Enclosure, Hinged Transparent Screw Cover The enclosure features a hinged screw cover and includes a base with 10-32 brass inserts and a formed in place PUR gasket It comes with a stainless hinge pin and 2 cover screws along with an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •Constructed from polycarbonate material.

    •UL/cUL Type rated for 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection ratings IP66 and IP67.

    •Impact Resistance rated IK09.

    •Suitable for a wide temperature range from -40 to 175 °F (-40 to 80 °C).

    •Flammability Ratings: UL94-5VA (f1)/ Cover: UL94-V0 (f1).

    •Fully insulated and halogen-free.

Specifications:

 Dimensions (Height x Width x Depth in inches) 8 x 6 x 5
 Dimensions (Height x Width x Depth in mm) 203.2 x 152.4 x 127
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Continuous Temperature Range °F -40 to 175
 Continuous Temperature Range °C -40 to 80
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 UV resistance UL 508
 Glow Wire Test (IEC 60695) 960 °C
