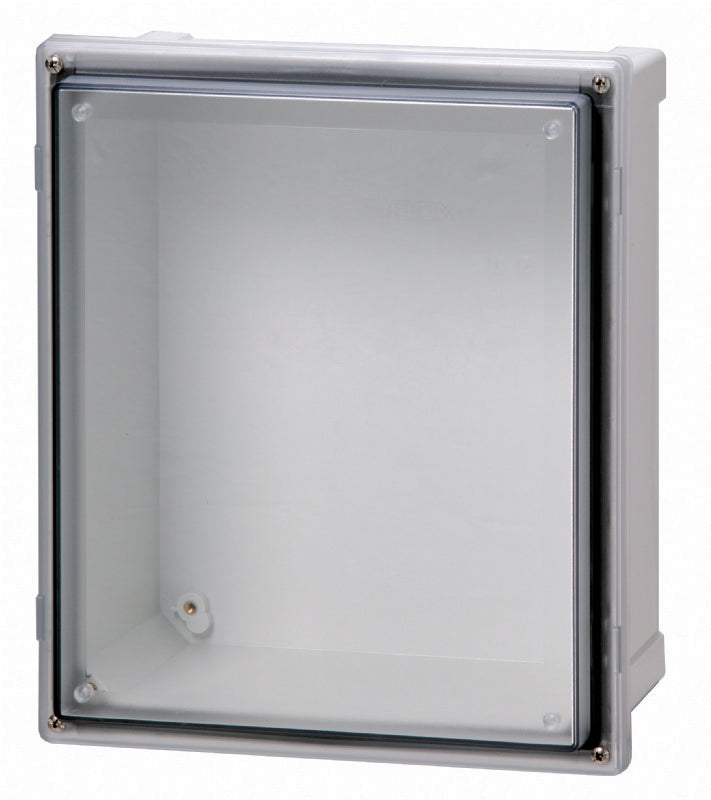

8561016 - 6 x 6 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover

8561016 - 6 x 6 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover

SKU: AR664CHSCT Download PDF

Now $13,998.00
BEFORE   Now $13,998.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This 6 x 6 x 4 inch PC enclosure features a hinged transparent screw cover for easy access and protection It is designed to meet UL/cUL Type ratings 4, 4X, 6, 6P, 12, 12K, and 13, ensuring suitability for various applications in demanding environments The enclosure is constructed from durable polycarbonate with an IP66 and IP67 rating, providing excellent ingress protection against dust and water The impact resistance is rated IK09, ensuring robustness.

It includes a base with 10-32 brass inserts, a formed in place PUR gasket for sealing, a stainless hinge pin, and two cover screws for secure closure The enclosure also comes with a mounting foot kit and accessory screws for panel mounting, making it ready for installation.

Features and Benefits:

    •Hinged transparent screw cover for easy access.

    •Constructed from durable polycarbonate material.

    •Rated IP66 and IP67 for excellent ingress protection.

    •Impact resistance rated IK09 for robustness.

    •Includes mounting foot kit and accessory screws for installation.

    •Temperature range of -40 to 175 °F (-40 to 80 °C).

    •Halogen free and UV resistant for environmental compliance.

    •Fully insulated for electrical safety.

Specifications:

 Dimensions (in): 6 x 6 x 4
 Height (mm): 152.4
 Width (mm): 152.4
 Depth (mm): 101.6
 Material: Polycarbonate
 Base Color: RAL 7035 - light grey
 Cover Color: Transparent
 Gasket Material: Polyurethane
 Temperature (°F continuous): -40 … 175
 Temperature (°C continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection: IP66; IP67
 Impact Resistance: IK09
 Electrical Insulation: Fully insulated
 Halogen Free: Yes
 UV Resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test: 960 °C
