Home / 8561014 12 x 10 x 6 Inch PC Enclosure, Transparent screw cover
1 1

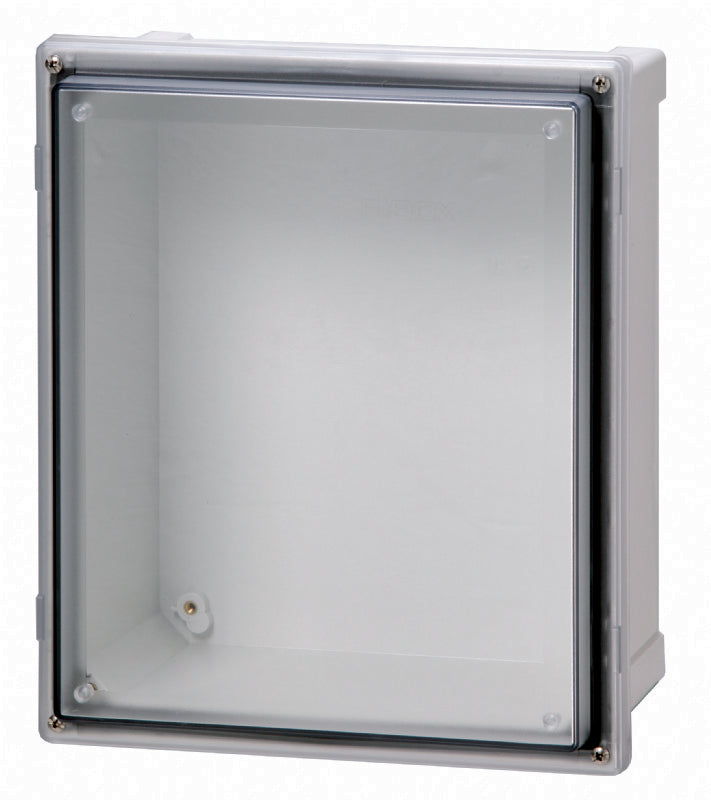

8561014 12 x 10 x 6 Inch PC Enclosure, Transparent screw cover

8561014 12 x 10 x 6 Inch PC Enclosure, Transparent screw cover

SKU: AR12106SCT Download PDF

Now $18,513.00
BEFORE   Now $18,513.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

12 x 10 x 6 Inch PC Enclosure, Transparent screw cover This enclosure features dimensions of 12 inches in height, 10 inches in width, and 6 inches in depth, making it ideal for various applications It includes a screw cover, a base with 10-32 brass inserts, a formed in-place PUR gasket, and 4 stainless cover screws The enclosure comes with a mounting foot kit and accessory 10-32 screws for panel mounting.

It is designed to meet various UL Type NEMA ratings such as 4, 4X, 6, 6P, 12, 12K, and 13, with an ingress protection rating of IP66 and IP67, and impact resistance rating of IK09 Furthermore, it is fully insulated and halogen free, ensuring safety and durability under different environmental conditions.

Features and Benefits:

    •Made from polycarbonate material for durability.

    •Transparent screw cover for easy visibility.

    •Rated for temperatures from -40 to 175 °F.

    •Meets UL/cUL Type 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress protection IP66/IP67 ensures weather resistance.

    •IK09 impact resistance for added protection.

    •Fully insulated and halogen free for safety.

    •UV resistant and complies with flammability ratings.

Specifications:

 Height (inches) 12
 Width (inches) 10
 Depth (inches) 6
 Height (mm) 304.8
 Width (mm) 254
 Depth (mm) 152.4
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent
 Gasket material Polyurethane
 Continuous temperature range (°F) -40 … 175
 Continuous temperature range (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
