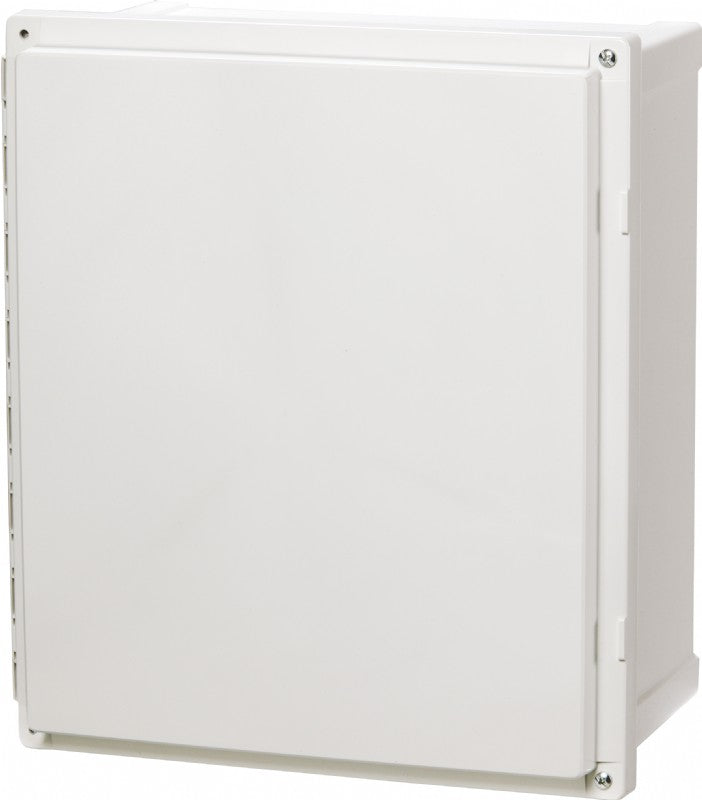

8561009 12 x 10 x 6 Inch PC Enclosure, Hinged Opaque Raised Screw cover

8561009 12 x 10 x 6 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR12106CHSC Download PDF

Now $16,566.00
BEFORE   Now $16,566.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

12 x 10 x 6 Inch PC Enclosure with Hinged Opaque Raised Screw cover designed for use in various environments This enclosure features a hinged screw cover, base with 10-32 brass inserts, a formed in place PUR gasket, stainless hinge pin, and two cover screws The product includes an enclosure mounting foot kit and accessory 10-32 screws for panel mounting Perfect for protecting electrical components, this enclosure is compliant with several UL ratings and offers reliable ingress protection.

Features and Benefits:

    •Hinged screw cover for easy access.

    •Constructed from durable polycarbonate material.

    •Base and cover color in RAL 7035 light grey.

    •Ingress Protection rated IP66 and IP67.

    •Impact Resistance rated IK09.

    •Fully insulated for electrical safety.

    •UV resistant per UL 508 standards.

    •Halogen free according to DIN/VDE 0472, Part 815.

    •High flammability rating UL94-5VA (f1).

    •Glow Wire Test rating of 960 °C.

Specifications:

 Dimensions (inch) 12 x 10 x 6
 Height (mm) 304.8
 Width (mm) 254
 Depth (mm) 152.4
 Material Polycarbonate
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
