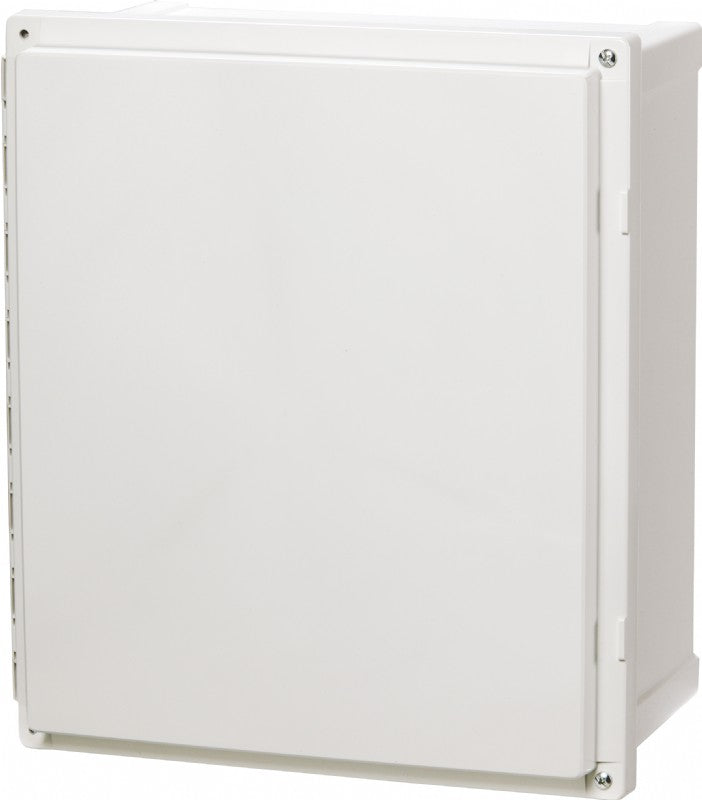

8561007 8 x 6 x 5 Inch PC Enclosure, Hinged Opaque Raised Screw cover

8561007 8 x 6 x 5 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR865CHSC Download PDF

Now $12,054.00
BEFORE   Now $12,054.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 8 x 6 x 5 Inch PC Enclosure features a hinged opaque raised screw cover designed for rugged applications It is constructed from durable polycarbonate material and is compliant with UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 standards The enclosure provides exceptional ingress protection rated at IP66 and IP67, ensuring reliability in harsh environments With impact resistance rated at IK09, it safeguards internal components from physical damage.

The flexible temperature range from -40 to 175 °F allows usage in extreme conditions, making it an ideal solution for various industrial applications.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Compliant with UL/cUL 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection rated at IP66 and IP67.

    •Impact resistance rated at IK09.

    •Temperature range from -40 to 175 °F.

    •Fully insulated with UV resistance.

Specifications:

 Dimensions (inch) 8 x 6 x 5
 Dimensions (mm) 203.2 x 152.4 x 127
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Continuous Temperature (°F) -40 … 175
 Continuous Temperature (°C) -40 … 80
 Ingress Protection IP66; IP67;
 Impact Resistance IK09;
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
